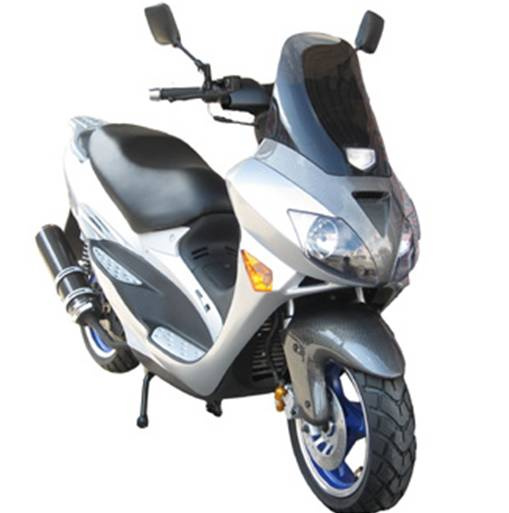

150cc EPA Scooter (TS150D-3)

Specifications

Prod Model:	TS150D-3

Product Description

Engine:
1) Engine model: YB157QMJ
2) Engine style: Single cylinder, air-cooled, 4-stroke
3) Bore x stroke: 57.4 x 57.8mm x mm
4) Ignition: CDI
5) Lubrication: Pressure / splash
6) Max. Power: 7.0kW/7, 500rpm
7) Max. Torque: 8.3N. M/6, 000rpm
8) Impression ratio: 9.2± 0.5: 1
9) Starting type: Electric / kick
10) Max. Speed: 85km/h
11) Oil consumption: Less than 380g/kWh
12) Max. Noise: 77dB
13) Clutch: Wet type, multi-plate

Scooter:
1) Dimensions: 2, 185 x 750 x 1, 420mm
2) Wheelbase: 1, 510mm
3) Gross weight: 175kg
4) Dry weight: 138kg
5) Transmission type: Strap
6) Tire and rim (front / rear): 4.00-12 / 4.00-12
7) Brake style (front / rear): Disc / disc
8) Absorber style: Independent hanging
9) Displacement: 149.5ml
10) Oil tank capacity: 10L
11) Climbing ability: More than 15°
12) Max. Load: 150kg

Packing:
Carton dimensions: 2, 000 x 700 x 1, 115mm
