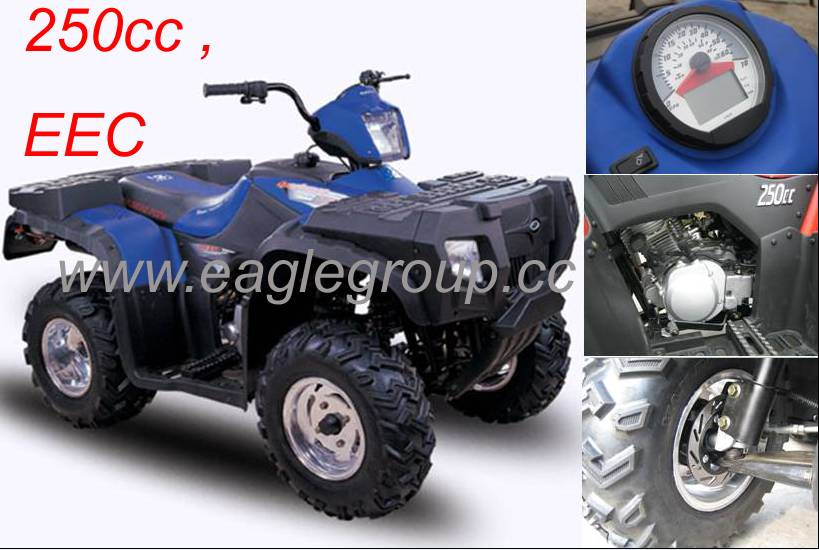

250cc Shaft Drive ATV with EEC (YG250E-A3)

Specifications

Prod Model:	YG250E-A3

Product Description

Features:
1) Dimensions (L x W x H): 192 x 103 x 120cm
2) Wheel base: 116cm
3) Engine type: Single cylinder, air-cooling, 4-stroke
4) Start mode: Electric / manual
5) Power: 10kW/7, 500rpm
6) Max. Torque: 15N. M/6, 000rpm
7) Max. Speed: 60km/h
8) Min. Ground clearance: 155mm
9) Dry weight: 240kg
10) Transmission mode: Shaft drive
11) Break type (F/R): Disc / disc
12) Power source: 12V, 14Ah
13) Climbing degree: 25º C
14) Fuel tank capacity: 11L
15) Front hanging: Arm-swing
16) Rear hanging: Integral
17) Tires:
A) Front wheels: 22 x 7 - 10
B) Rear wheels: 22 x 10 - 10
18) Cylinder size: 71 x 58mm
19) Displacement: 229.6mL
20) Transmission: 5 gears, automatic clutch
21) Height of seats: 82cm
22) Min. Turning radius: 290cm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Load capacity: 165kg
26) Engine oil: 1.6L
27) Gear oil: 0.25L
28) Lubrication: Press splash
29) Gas cylinder number: 1
30) Max. Number of riders: 2

Outer packing:
Dimensions: 197 x 112 x 88cm

Conveyance:
Qty/20' GP: 10 units
Qty/40' GP: 24 units
Qty/40' HQ: 36 units
