Specifications
Prod Model: |
GT250L-RE |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission System: |
Chain Drive |
Transmission Type: |
Manual |
Certification: |
EEC |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
250CC |
Structure: |
Two Side Doors |
Brake Type: |
Disc Brake |
Maximum Speed: |
80-120km/H |
Product Description

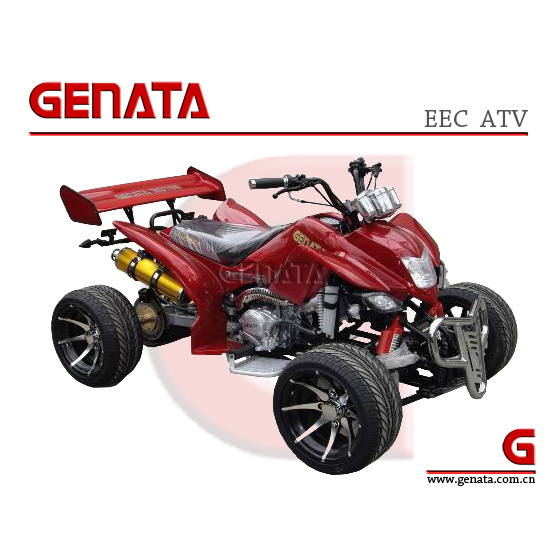

High Quality Racing ATV/QUAD GT250L-RE for adult use. With EEC certificate.EEC No.:e4*2002/24*1994*00.it is fit for on road legal use in Europe.
Feature parts: 12'Alloy rims with 235/30-12 tyres.alloy double exhaust pipe, alloy hand grips. Luxury speedometer, mirror and shock absorber. High quality tires.
ENGINE |
Engine type: |
250cc Single cylinder water-cooled four-stroke |
Bore and stroke: |
67 x 65mm |
Compression proportion: |
10.5: 1 |
Maximum power: |
12.5kw / 6500rpm |
Maximum torque: |
18.5N. m / 5500rpm |
Ignition mode: |
CDI |
Starter mode: |
Electric recoil backup |
Engine oil capacity: |
0.9L |
DRIVE TRAIN |
Clutch: |
manual |
Transmission: |
speed adjustment 4 speed with reverse |
Final drive: |
chain |
CHASSIS / SUSPENSION / BRAKES |
Front suspension: |
double wishbone suspension |
Rear suspension: |
mono shock swing-arm |
Front brakes: |
disk |
Rear brakes: |
disk |
Front tires: |
12 inch 235/30-12 (Alloy rims) |
Rear tires: |
12 inch 235/30-12 (Alloy rims) |
Power source: |
12V / 14AH |
DIMENSION |
Product dimension: |
1900 x 1115 x 886mm |
Front Track: |
810mm |
Rear Track: |
760mm |
Seat Height: |
810mm |
Ground Clearance: |
110mm |
Turning radius: |
3000mm |
Fuel tank capacity: |
5.0L |
Dry weight: |
175KG |
Load capacity: |
160KG |
Max. Speed: |
80-120 km/h |
OTHER |
Fuel No.: |
RQ 90 |
Lubrication type: |
pressure splash |
Idling/turning speed: |
1500rpm |
Climb capability: |
30 |
Parking brake: |
mechanical lock |
Rider capacity: |
1 person |
Option color: |
metallic red, metallic blue, metalic black, |
|
metallic silver, metallic white |
PACKING |
Carton dimension: |
1680 x 1100 x 760mm |
Conveyance |
Quantity / container: |
20' GP / 18 units 40' HQ / 42units |
