Home Chongqing Beyond Special Vehicle Co., Ltd. 300cc EEC ATV Quad Bike Gkx300-29 with CVT 4X2wd

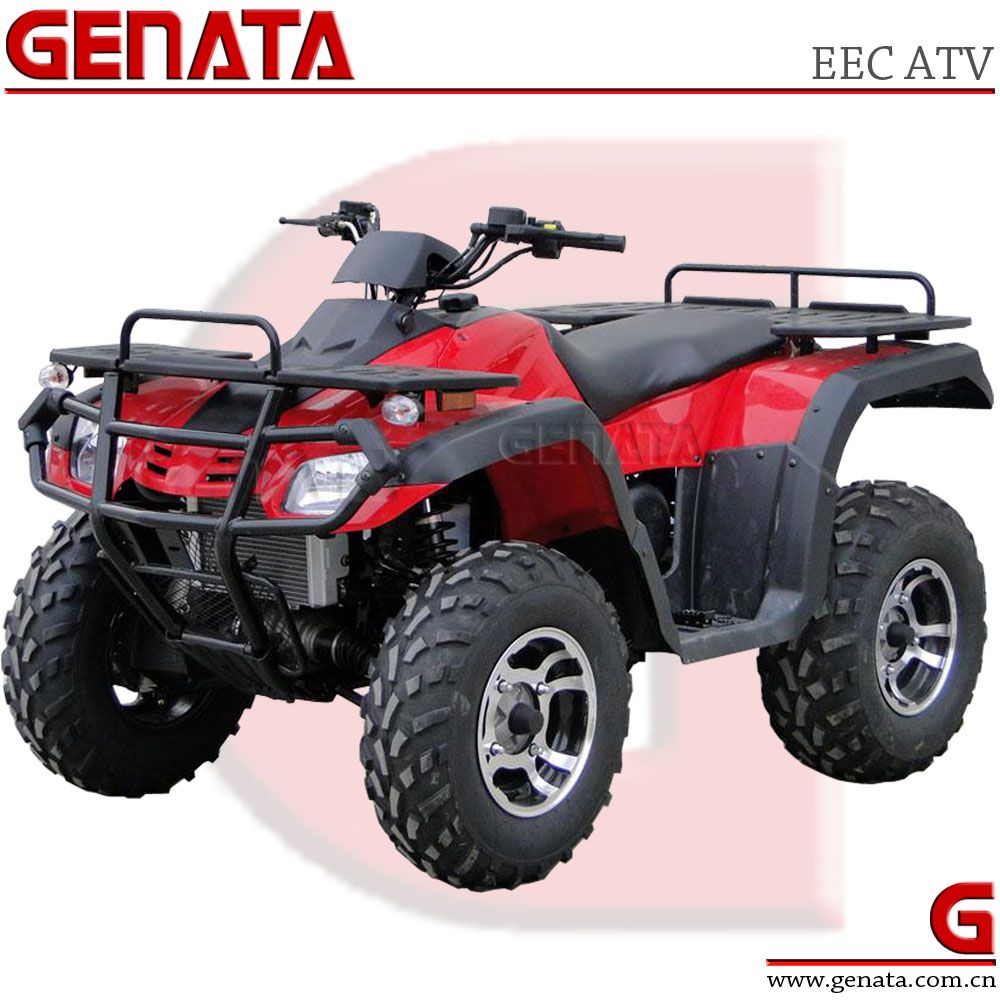

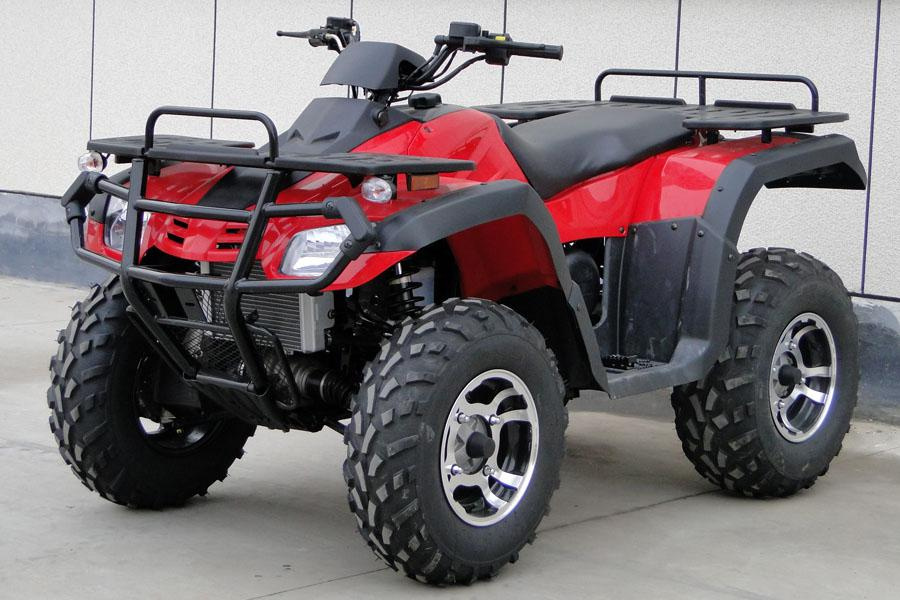

300cc EEC ATV Quad Bike Gkx300-29 with CVT 4X2wd
| Price: | Negotiable/Piece |
|---|---|
| Trade Terms: | FOB,CFR |
| Min Order: | 8/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | GKX300-29 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission System: | Shaft Drive |
| Certification: | EEC |
| Engine Type: | 4 Stroke |
| Fuel: | Gas / Diesel |
| Displacement: | 300CC |
| Structure: | Without Door |
| Maximum Speed: | 50-75 km/h |
| Brake Type: | Disc Brake |
| Condition: | New |
| Brand: | Genata |
Product Description
300cc EEC ATV Quad Bike GKX300-29 with CVT 4X2WDHigh quality 300cc ATV Quad bike in the market.
Automatic CVT,4 stroke,single cylinder,4x2WD engine.
Electric start,EEC approved.
| ENGINE | |
| Engine Type: | 300cc Automatic CVT, 4-stroke, water-cooled |
| Max. Power (kw/rpm): | 14kw/7000rpm |
| Max. Torque (n.m/rpm): | 20n.m/5500rpm |
| Max. Speed (kw/h): | 75km/h |
| Cylinder: | Single cylinder |
| Bore Stroke: | 72.5mm x 66.8mm |
| Displacement: | 276cm |
| Compression Ratio: | 10.3:1 |
| Carburetor: | CVK052 |
| Lubricate: | Combined force-feed and splash lubrication |
| Air Filter Type: | Dry air filter net |
| Spark Plug: | DR8EA |
| Starting: | Electric start |
| Ignition: | C.D.I |
| Starting Procedure: | Start electric lock, hold brake ,press start switch |
| CHASIS | |
| Gearshif: | Manual |
| Shift Switch: | NO |
| Transmission | Automatic CVT with H/L/N/R |
| Final Drive System : | Shaft / 4x2WD |
| Brake Front: | Hydraulic twin disc brakes |
| Brake Rear: | Hydraulic single disc brake |
| Parking Device: | Mechanical brake lock on rear disc |
| Brake Distance: | 7m/30km/h |
| Front Suspension: | Mcpherson front suspension |
| Rear Suspension: | Swing arm |
| Shock Absorber (F): | Double |
| Shock Absorber (R): | Single |
| Battery: | 12V/14AH |
| Engine Oil: | 1.5L |
| Transmission Oil: | 0.8L |
| Rear Oil: | 0.3L |
| Fuel: | 90# unleaded gasoline |
| Fuel Capacity: | 12.5L |
| Turning Radius: | 3280mm |
| Max. Load (kgs/lbs): | 156kg |
| Tire (F/R) | Front 25 x 8-12/ Rear 25 x 8-12 |
| Wheel Material: | Steel |
| DEMENSIONS | |
| Overall Size (L/M/H): | 2016 x 1180 x 1237mm |
| Carton Size (L/M/H): | 2280 x 1290 x 870mm |
| Wheelbase (mm): | 1271mm |
| Seat Heigh (mm): | 895mm |
| Ground Clearance (mm): | 183mm |
| Net Weight (kgs/lbs): | 267kgs |
| Colors: | Red, black, orange, blue and green. |
| Container Loading: | 8pcs/20'FT 25pcs/40'HQ |
Chongqing Beyond Special Vehicle Limited is one of the subsidiaries of GENATA group, which is a professional manufacturer of ATVs series, Go karts, Motorcycle, and power equipments. We specialize in the production of the former products and are experienced in sales and services with a well-staffed research and development department.
We has established a production and research and development base in Chongqing and Zhejiang. The current production area covers over 50, 000 square meters, with over 300 well-qualified and efficient engineers and technicians. More than 50 affiliated factories are engaged in the production of spare parts and accessories while the sales outlet is in HongKong. The sales head quarter and customer service centre has been moved to Guangzhou recently to serve clients all over the world.
Our company adopts the most advanced technology in the production of ATVs, go karts, and power equipments under the close supervision of our Japan Head Quarter. Moreover, our factory is equipped with advanced assembly lines, packing process assembly lines and specific testing assembly lines. With a high standard of Quality Control, our factory has attained the International Standard of ISO 9001, as well as ISO 9001: 2000 for Inter-national Management System.
The motto of Genata is: "To serve people with the best quality ". We will endeavour to produce high quality products to cater for the needs of clients all over the world.
We has established a production and research and development base in Chongqing and Zhejiang. The current production area covers over 50, 000 square meters, with over 300 well-qualified and efficient engineers and technicians. More than 50 affiliated factories are engaged in the production of spare parts and accessories while the sales outlet is in HongKong. The sales head quarter and customer service centre has been moved to Guangzhou recently to serve clients all over the world.
Our company adopts the most advanced technology in the production of ATVs, go karts, and power equipments under the close supervision of our Japan Head Quarter. Moreover, our factory is equipped with advanced assembly lines, packing process assembly lines and specific testing assembly lines. With a high standard of Quality Control, our factory has attained the International Standard of ISO 9001, as well as ISO 9001: 2000 for Inter-national Management System.
The motto of Genata is: "To serve people with the best quality ". We will endeavour to produce high quality products to cater for the needs of clients all over the world.
