Specifications
Prod Model: |
GM250YZF-R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certificate: |
EEC/Coc |
Engine Type: |
4-Stroke |
Displacement: |
126-250CC |
Certification: |
CQC |
Type: |
Racing Motorcycle |
Fuel: |
Gas / Diesel |
Condition: |
New |
Product Description

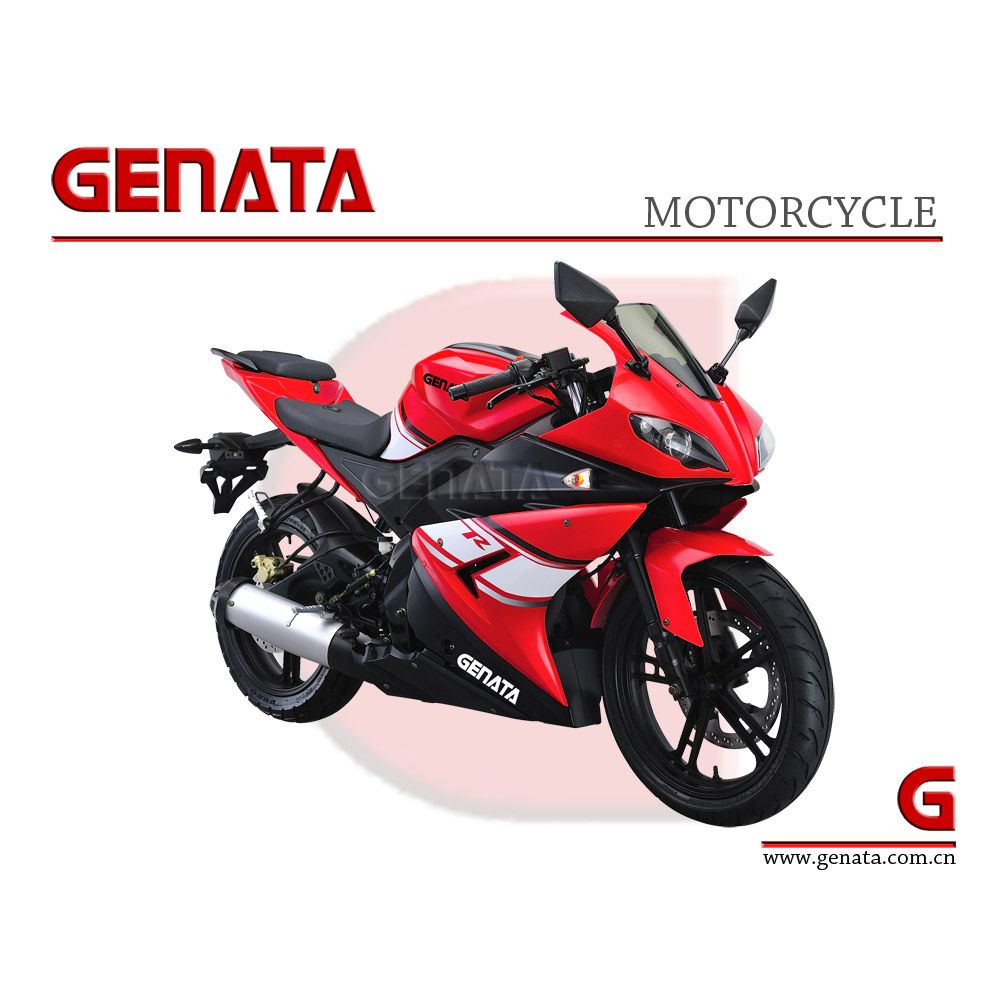

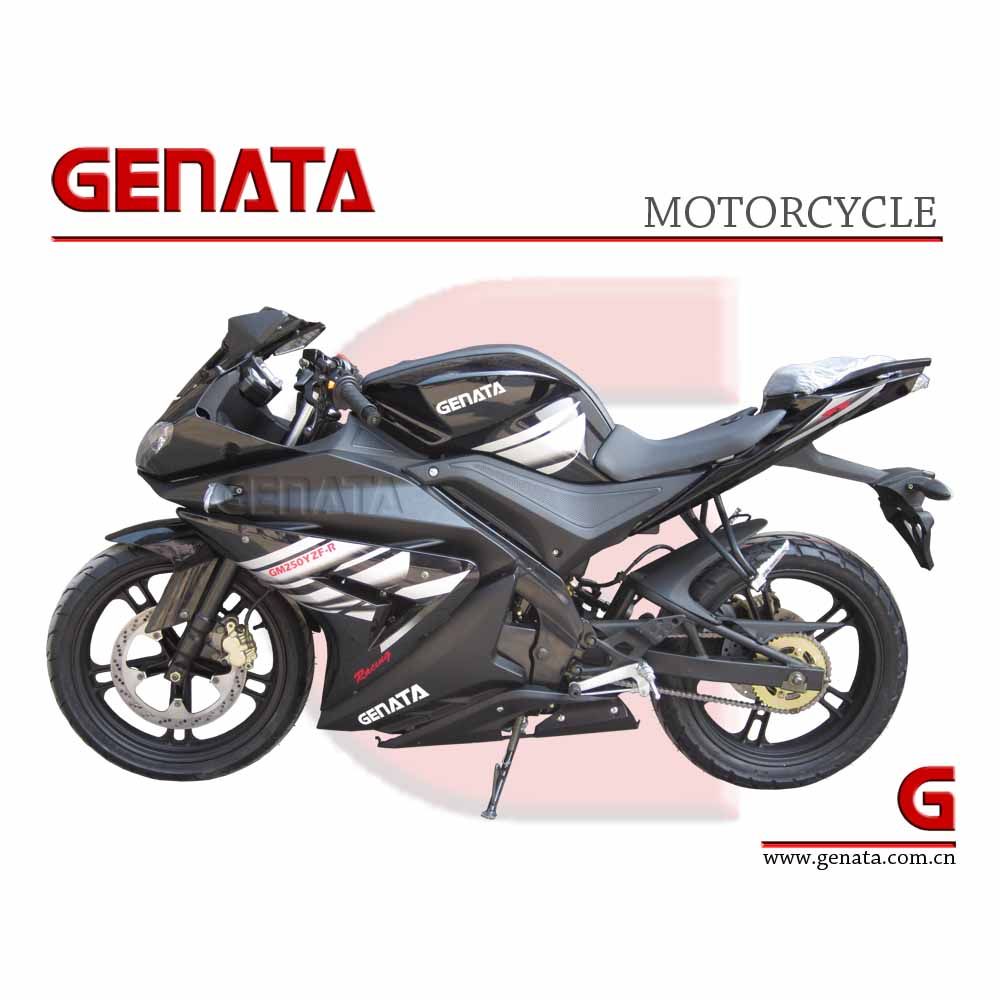

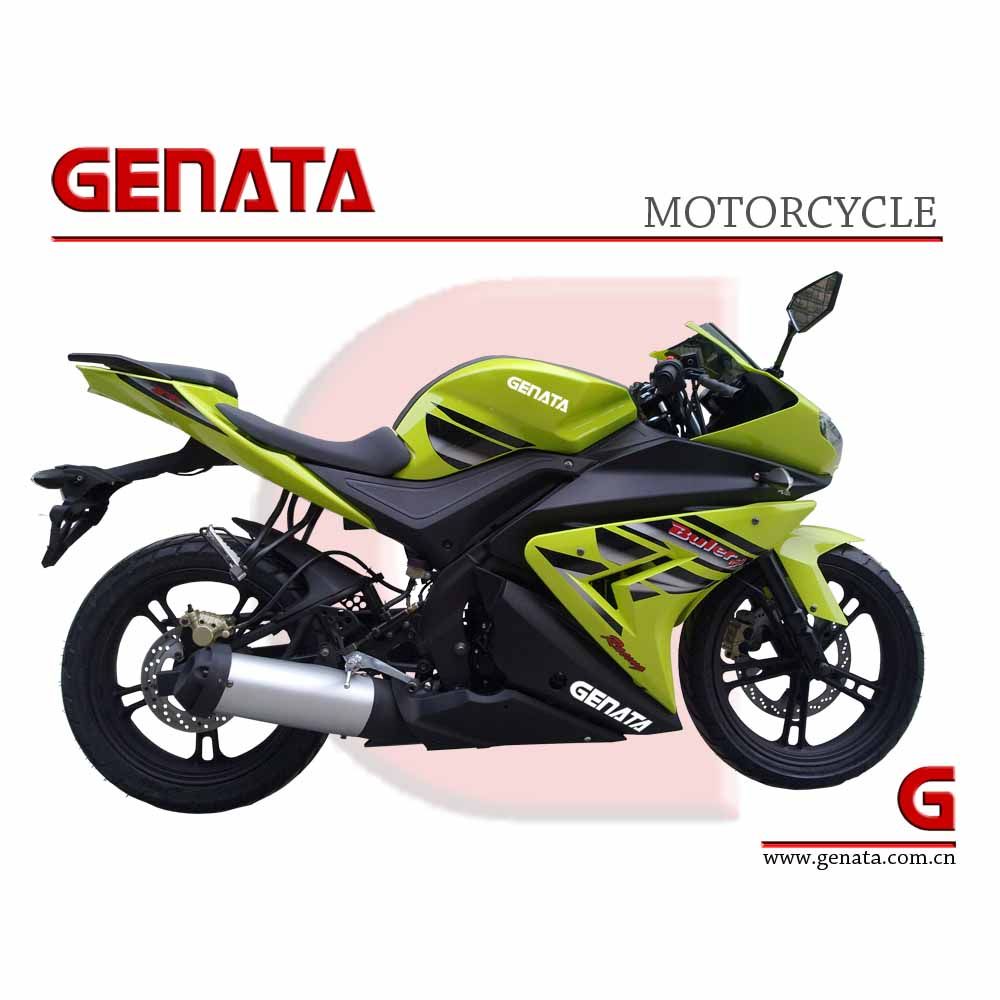

YAMAHA YZF-R style Racing Motorcycle,
250CC and 125CC are EEC/COC approved
250CC EEC NO.: e4*2002/24*2944*00
125CC EEC NO.: e4*2002/24*2948*00250cc/200cc/150cc/125cc are available
ENGINEEngine Type:
165FMM Single Cylinder, 4 Stroke, air-cooling,
CBB counter balance shaft engineBore X Stroke (Mm): 65.5× 66.2
Idle speed(r/min): 1500
Max. Power (Kw/R/Min): 12/7500
Max. Torque (n. M/r/min): 18.3/6000
Displacement(ml): 223.4
Max. Speed (km/h): 125
Min. Fuel consume(g/km. H) ≤ 354
Ignition: CDI
Starting type: Kick/electric start
Lubrication: Pressure splash
Cooling: Air-cooled
Battery: 12V 7AH/ 12N7-3B
BODYGear shift: International 5 gear
Brake(F/R): Pump disc brake
Transmission: Chain drive
Minimum turn radius(mm): 4500
Front/Rear tire: 110/70-17 / 130/70-17
Front/Rear wheel: 2.75-17 / 3.75-17
DIMENSIONSL x W x H (mm): 1960× 730× 1060
Fuel Tank Capacity (L): 14L
Wheel Base(mm): 1355
Turning Radius (mm): 2250
Min Ground Clearance (mm) 200
Loading Capacity(kg): 150
Climb Ability(° ): ≥ 18
Net Weight (kg): 139
Gross Weight(kg): 150
OTHERSContainer Loading: 20'GP: 24PCS / 40' GP: 50PCS / 40'HQ: 50PCS.
ENGINE |
|
Engine Type: | 165FMM Single Cylinder, 4 Stroke, air-cooling, CBB counter balance shaft engine |
Bore X Stroke (Mm): | 65.5× 66.2 |
Idle speed(r/min): | 1500 |
Max. Power (Kw/R/Min): | 12/7500 |
Max. Torque (n. m/r/min): | 18.3/6000 |
Displacement(ml): | 223.4 |
Max. Speed (km/h): | 125 |
Min. fuel consume(g/km. h): | ≤ 354 |
Ignition: | CDI |
Starting type: | Kick/electric start |
Lubrication: | Pressure splash |
Cooling: | air-cooled |
Battery: | 12V 7AH/ 12N7-3B |
BODY |
|
Gear shift: | International 5 gear |
Brake(F/R): | Pump disc brake |
Transmission: | Chain drive |
Minimum turn radius(mm): | 4500 |
Front/Rear tire: | 110/70-17 / 130/70-17 |
Front/Rear wheel: | 2.75-17 / 3.75-17 |
DIMENSIONS |
|
L X W X H (mm): | 1960× 730× 1060 |
Fuel Tank Capacity (L): | 16L |
Wheel Base(mm): | 1340 |
Turning Radius (mm): | 3150 |
Min Ground Clearance (mm): | 150 |
Loading Capacity(kg): | 150 |
Climb Ability(° ): | ≥ 23 |
Net Weight (kg): | 128 |
Gross Weight(kg): | 153 |
The Maximum Velocity: | 120 km/h |
Carton Size: | 1870 x 580 x 1130 |
OTHERS |
|
Container Loading: | 20' Gp: 24pcs 40' HQ: 50pcs CKD:40' HQ: 75pcs |
