Home Ningbo Andorra Import and Export Co., Ltd. 2015 New Model 125cc Cub Motorcycle with Aluminum Wheel

2015 New Model 125cc Cub Motorcycle with Aluminum Wheel

2015 New Model 125cc Cub Motorcycle with Aluminum Wheel
Price: US $ 400-500/Piece
Trade Terms: FOB
Min Order: 1X20'FT
Pay Type: T/T

Specifications

Prod Model: KG135B-VD
Markets: North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Brand: OEM
Color: Any Color
Type: Cub Motorcycle
Displacement: 51-125CC
Engine Type: 4-Stroke
Fuel: Gas / Diesel
Certification: CE
Condition: New
Year Range: 2015

Product Description

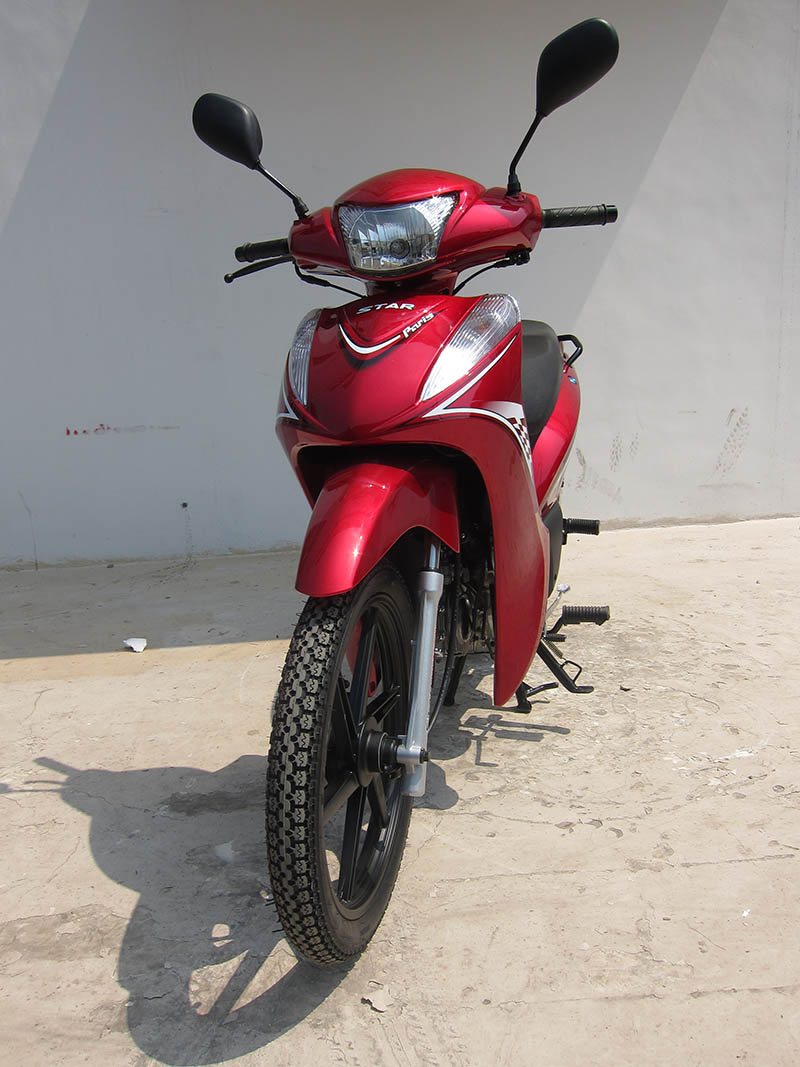

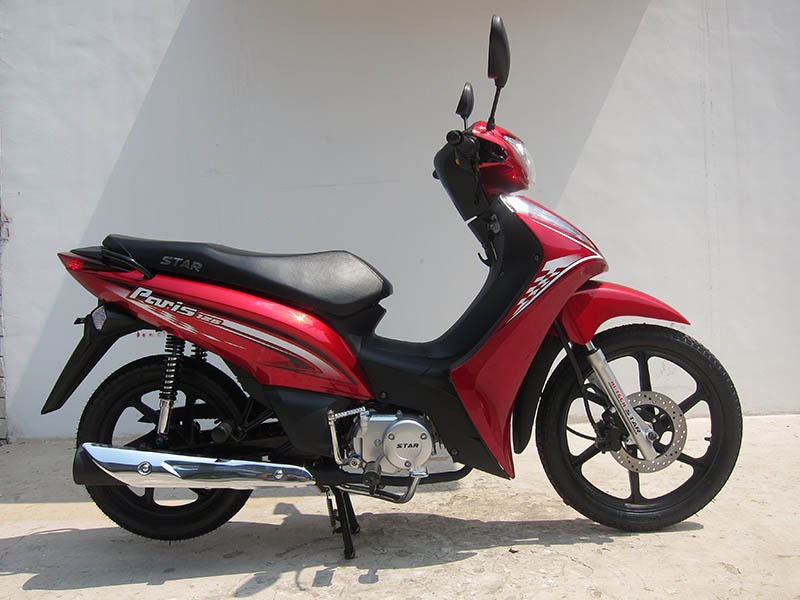

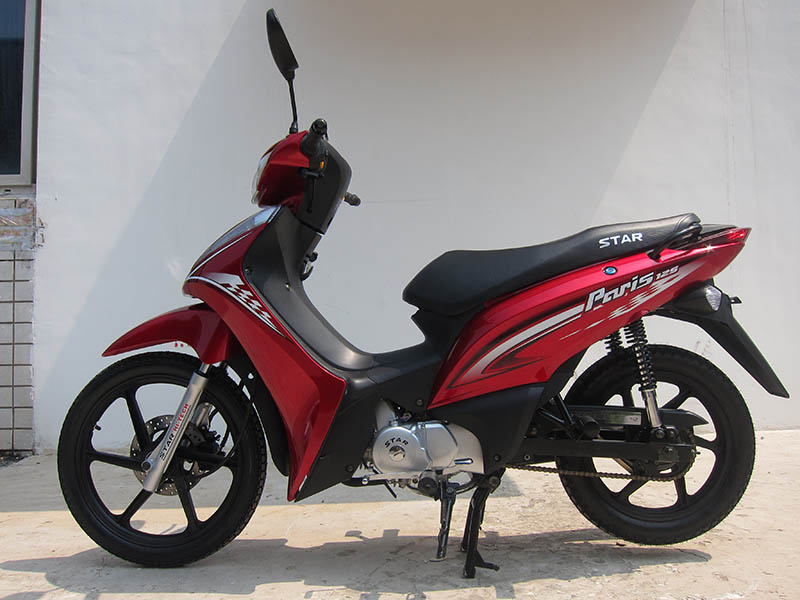

2015 NEW MODEL 125CC CUB MOTORCYCLE WITH ALUMINUM WHEEL

Technical Data:
engine typeHorizontal,single cylinder,4-stroke, air-cooled
engine model No154FMI
dimension(mm)L*W*H1850×715×1030
wheel base(mm) 1210
ground distance(mm)130
brake distance(m)≤7m/30km/h
start time(s)≤15s
N.W(Kg) 96
standard loading(Kg)140Kg
 Max speed(km/h)75
 min fuel cons.(L/100km)≤2.1
brake typeFront disc
start typeElectric/kike
tyire sizeFront:130/60-13,Rear:130/60-13
tyire pressure(kpa)Front: 280, Rear:280
climb(°)≥18°
start typeC.D.I
seat height(mm) 740
Primary Velocity ratio4.059
fuel tank vol(L) 3.8
fuel size90#
spark sixeA7RTC
spark gap(mm) 0.6~0.7
clutch typeSingle clutch
lubricationPressure splash
lubrication oil vol(L)0.8
valve gap(mm) intake:0.03,exhaust:0.05
bore*stroke(mm) 54X55.5
compress ration9.0:1
displacement(ml)127
standard power(kw/r/min)6.4KW/8000±500r/min
Max torque(N.m/r/min) 9.5N.m/5000±500r/min
other velocity ratiosgear 1:2.833

gear 2:1.706

gear 3:1.238

gear 4:0.958
 Conveyance SKD PACKING:105SETS/40HQ






FAQ

1.      Can I order sample?
RE: Yes, we accept sample for trial order.
2.      How long for delivery time?
RE: For sample order, our delivery time is 20 to 25 days; for one full container, it's 30days.
3.      Which color & decals will be available?
RE: Normally, we will introduce the most popular color & decals to customer selection. And we also can design decals according the customer's requirement.
4.      Can I use my logo (sticker) on the motorcycle?
RE: Yes, we can do OEM
5.      How to delivery to foreign buyer?
RE: For sample order, the customer can select by sea or by air. For full container order, by sea is the best choice.
6.      What's the payment term?
RE: Normally we use T/T
7.      Can I mix different models in one full container order?
RE: Yes, for first order, we can accept different models in one full container for trial.
8.      Need I buy spare parts for first order?
RE: yes, you need to buy some spare parts for future service, The quantity depends on your order. We will give you advice when you need. normally, we can supply 1 set wearing parts for free.
