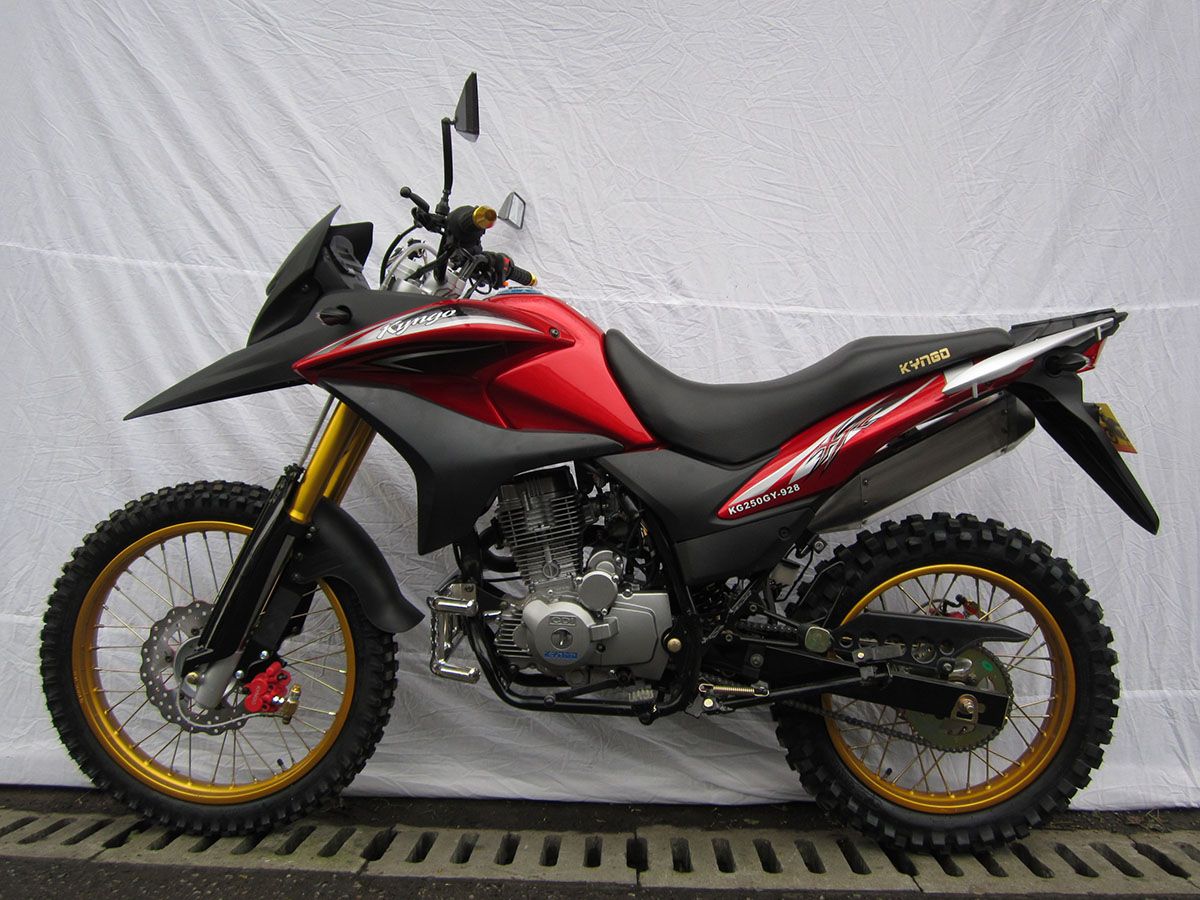

928 Dirt Bike 200cc/250cc/300cc with LED Light
| Price: | US $ 700-900/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 1X20'FT |
| Pay Type: | T/T |
Specifications
| Prod Model: | KG250GY-928 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: | 2180X770X1200mm |
| Wheel Base: | 1430 mm |
| Rim Type: | Aluminum Wheel |
| Tire Type: | Cross Tire |
| Battery Spec: | 12n7a-4A /151*61*131mm |
| Type: | Dirt Bike |
| Displacement: | >250CC |
| Engine Type: | 4-Stroke |
| Certification: | ISO9001 |
| Condition: | New |
Product Description
928 DIRT BIKE 200CC/250CC/300CC WITH LED LIGHT| Technical Data: | |
| Engine type | 4-strokes/single cylinder/air cooled/verticle type |
| cylinder bore /stroke | 70×70.2 |
| Displacement | 300ml |
| Lubrication | Pressure Splash |
| Start | Electric/Kick Start |
| Ignition | DC-CDI |
| Gasoline brands | RQ-90 |
| Engine oil brands | 15W/40 |
| Total capacity of lubricating oil | 1.1L |
| Primary transmission ratio | 3.333 |
| Transmission ratio: | Gear 1:3.0 Gear 2:2.071 Gear 3: 1.529 Gear 4:1.150 Gear 5:0.954 |
| Dimension(L×W×H) mm | 2180×770×1200mm |
| Wheel Base | 1430 mm |
| Min ground clearance | 290 mm |
| Height of seat | 900 mm |
| Operating bar turn angle(L/R) | ≤48° |
| Minimum turning radius | 2315 mm |
| Final transmission ratio | 0.659722222 |
| Gradeability | ≥25° |
| Seats | 2 |
| Shift way | Gear 5 |
| fuel tank | 14L |
| Fuel Type | 90# |
| Max Load Capacity | 150 Kg |
| Dry weight | 125kg |
| Max speed Km/h | 97 |
| brake performance | ≤7m/30km/h |
| Start performance | ≤15S |
| Max Power Kw/r/min | 10KW/7500±500r/min |
| Consumption of fuel L/100Km | 2.7 |
| Brakes | Front Disc,Rear Disc |
| Brake operation mode (FR/RR) | FRONT: HAND REAR: FOOT |
| Rim type | aluminum wheel |
| Rim specification | front:1.85×21 rear:2.15×18 |
| tire type | Cross tire |
| tire specification | FRONT:3.00-21 REAR:4.60-18 |
| Turning light spec | 12V-10W |
| Battery spec &size (l×w×h) mm | 12N7A-4A /151*61*131 |
| loadig qty(skd packing) | 93sets/40HQ |

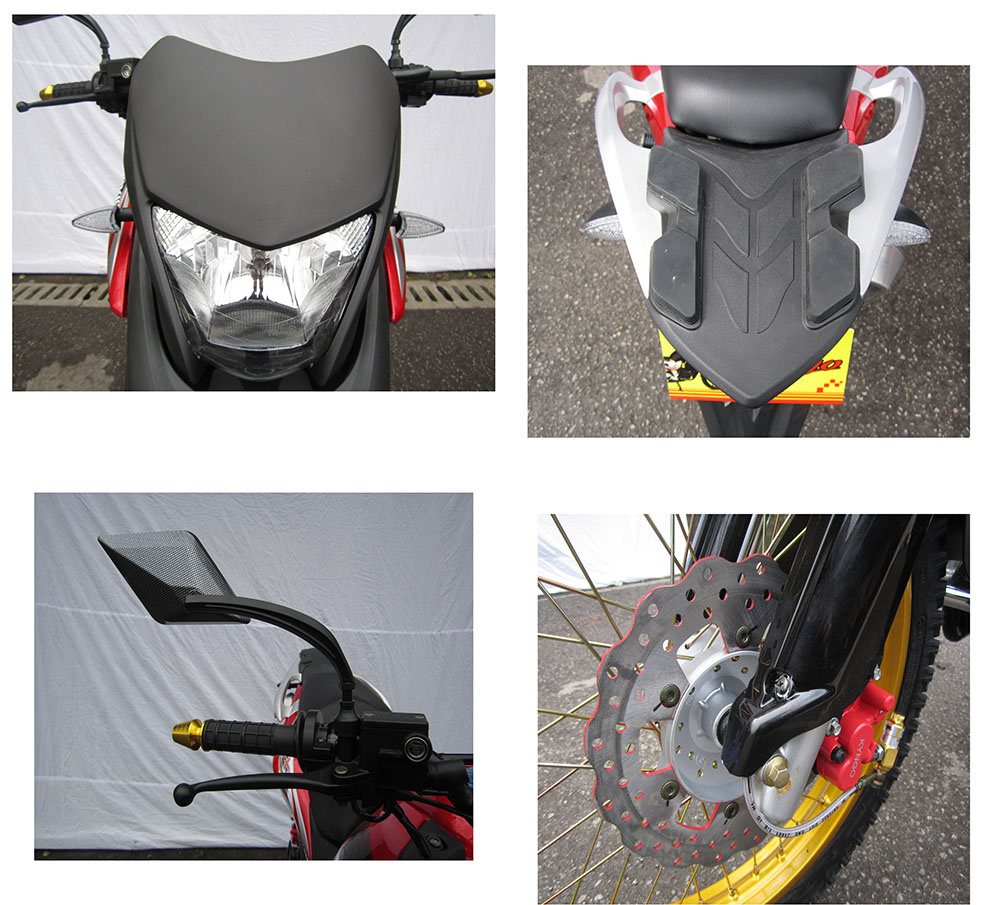

Main Instructions:
1.250cc engine with balance,powerful and low shake
2.stardard off road tires
3.spoke wheel with front and rear disc brake
4.with Chromeplate bumper and alloy rear armrest
5.new model alloy back view mirror
6.up side down front shock absorber
7.with remote control and LED turn light
8.standard LCD speedometer
9.We support OEM, ODM, SKD, CKD or whole parts form and support customers' Logo and stickers.
Optional: CG200cc\250cc\300cc Engine
