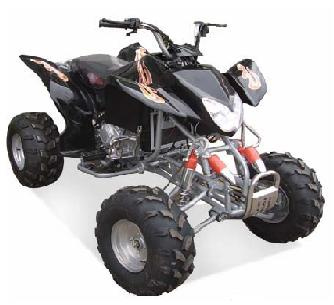

200CC Water Cooled ATV (XW-A10)

Prod Model:	XW-A10

Product Description

XW-A10

1) Engine type: Single cylinder, water-cooled, 4-stroke
2) Max. Speed (km/h): 90
3) Transmission system: Chain drive
4) Piston displacement (ml): 200cc
7) Maximum power: 12. 5/8000
8) Maximum torque (Nm/rpm): 15. 0/6000
9) Starting system: Only electric start
10) Seat height (mm): 720
11) Ground clearance (mm): 110
12) Brake (front/rear): Drum/disk
13) Front tire: AT 19 x 7-8/2. 9psi
14) Rear tire: AT 18 x 9. 5-8/2. 9psi
15) Ignition type: CDI
16) Fuel tank capacity (L): 4. 5
17) Fuel no.: RQ 90
18) Lubrication type: Pressure, splash

19) Idling/turning speed (rpm): 1500
20) Front suspension: Wishbone suspension
21) Rear suspension: Mono-shock swing arm
22) Climb capability: 30
23) Engine oil capacity (L): 0. 9
24) Parking brake: Mechanical lock
25) Battery: 12V 9Ah
26) Gear oil capacity (L): 0. 11
27) Rider capacity: 1 person
28) Rear track (mm): 760
29) Front track (mm): 810
30) Compression ratio: 10. 16: 1
31) Cylinder arrangement: Single cylinder
32) Axle base (mm): 1110
33) Lubrication: Press splash

Conveyance:
Qty/20" FCL: 29units
Qty/40" HQ: 66units
