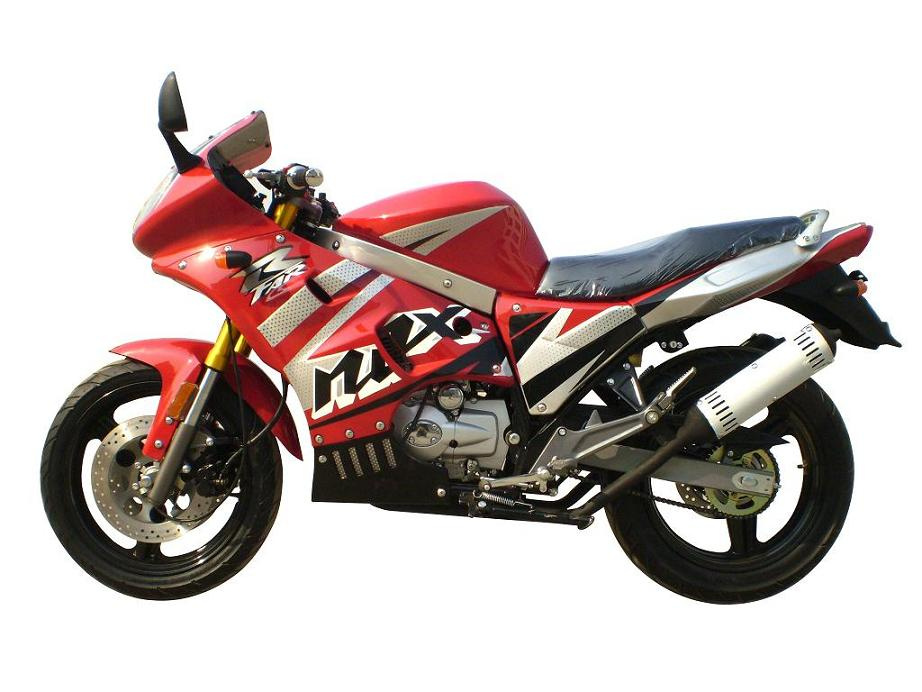

200cc Motorcycle (SJ200GS)

Specifications

Prod Model:	SJ200GS

Product Description

Feature: 200cc. 4 stroke, electrik start, manual clutch, front disc&rear disc, spoke wheel, up-side-down front shock, single cylinder dual exhaust.

Specifications:
Engine type: Single cylinder dual exhaust, air cooling, 4 stroke
Clutch method: Manual
Ignition method: C. D. I.
Start method: Electric start
Cylinder: Single
Transmission: Chain
Displacement(ml): 196
Bore*stroke(mm): 63.5*62
Compression ratio: 9.2: 1
Rated power(kw/r/min): 11/8500± 500
Maximum torque(N. M/r/min): 13/6500± 500
Lubrication: Splash
Gear: 5
Dimensions(L*W*H)(mm): 2250*815*1150
Wheel base(mm): 1140
Seat height(mm): 850
Min. Turning radius(mm): 2200
Min. Ground clearance(mm): 200
Rider capacity: 2
Brake: Front&rear disc
Front wheel: 110/70-17
Rear wheel: 150/70-17
Fuel tank capacity(L): 14
Engine oil capacity(ml): 800
Climbing capacity: ≥22
Max. Load(kg): 150
Max. Speed(kw/h): 100
Packing size(L*W*H)(mm): 1900*570*860
Net weight(kg): 145
Gross weight(kg): 165
