| Prod Model: |
168KT-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Age: |
Adults |
| Displacement: |
200CC |
| Maximum Speed: |
<60 km/h |
| Transmission: |
Chain |
| Start-up: |
Manual Start-up |
| Usage: |
Toy |
| Kind: |
Gear |
| Color: |
Red |
| Condition: |
New |
Product Description

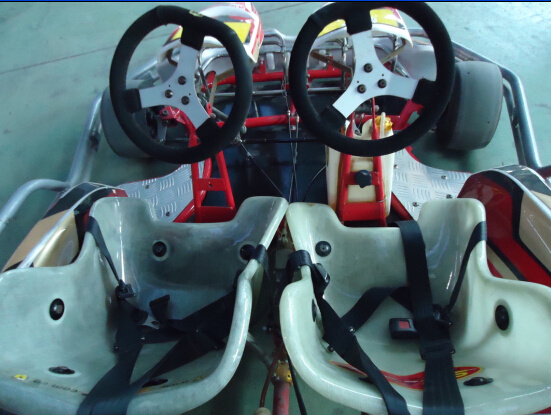

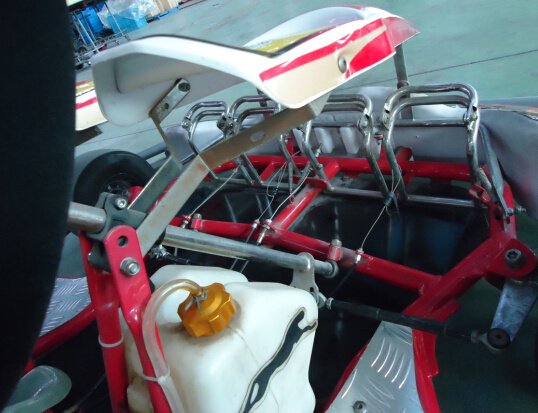

The SQ168KT-5 is composed by a frame realized with Ø 30 mm tubes. This model has BLACK & GOLDEN anodized components...E. G. Pedals, Bearing Hangers, Hubs, and Carriers, steering etc., professionally and neatly designed to satisfy our customers who want the best one for their hobbies. SQ168KT-5 is equipped with 200CC 4-stroke, air force cooling (1/2 shift box) engine, and designed for passion, manufactured by enthusiasm with the ever-lasting pursuit for sense.
| PRODUCT | RACING KART | MODEL | SQ-KT168-5(double seat) |
| Engine | 4-stroke, air force cooling(1/2 shift box),200CC |
| Horsepower | 6.5HP |
| Braking form | Hydraulic vacuum disc |
| Starting mode | Pull wire back kick start |
| Fuel tank capacity | 7.5L |
| tire size | 10*4.5-5(FR),11*7.1-5(RR) |
| Brake Pump | Four piston |
| Transmission mode | Chain transmission(428) |
| Steering ratio | 1:1 |
| Wheelbase | International standard1140MM |
| axle | 30 |
| Frame material | special alloy steel |
| guardrail | special alloy steel 32 |
| Bonding technology | Argon arc bonding technology |
| guardrail | 14 fixed point |
| Kart size | 1930mm*1510mm*630mm |
| Seat belts | three-point form |
| STUB AXLE | M10 |
| optional: | 5.5HP,9HP Engine |
|
PRODUCT |
RACING KART |
MODEL |
SQ-KT168-5(double seat) |
|
Engine |
4-stroke, air force cooling(1/2 shift box),200CC |
|
Horsepower |
6.5HP |
|
Braking form |
Hydraulic vacuum disc |
|
Starting mode |
Pull wire back kick start |
|
Fuel tank capacity |
7.5L |
|
tire size |
10*4.5-5(FR),11*7.1-5(RR) |
|
Brake Pump |
Four piston |
|
Transmission mode |
Chain transmission(428) |
|
Steering ratio |
1:1 |
|
Wheelbase |
International standard1140MM |
|
axle |
30 |
|
Frame material |
special alloy steel |
|
guardrail |
special alloy steel 32 |
|
Bonding technology |
Argon arc bonding technology |
|
guardrail |
14 fixed point |
|
Kart size |
1930mm*1510mm*630mm |
|
Seat belts |
three-point form |
|
STUB AXLE |
M10 |
|
optional: |
5.5HP,9HP Engine |
Zhejiang Shengqi is a modern manufacturer (SQ) and exporter of Jet Ski, go-karts, dirt bikes, water-cooling pocket bikes, gasoline skateboards, as well as remote control planes, R/C boats, and car models etc. All of our products have CE certification and some have EEC and EPA certifications. Our main markets are European countries, North America, South Africa, Australia, and Asia etc.
