Specifications
Prod Model: |
SQ500ST-4 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Transmission Type: |
Automatic |
Engine Type: |
4 Stroke |
Structure: |
Without Door |
Displacement: |
>400CC |
Transmission System: |
Shaft Drive |
Fuel: |
Gas / Diesel |
Brake Type: |
Disc Brake |
Maximum Speed: |
>75 km/h |
Power: |
>1000W |
Certification: |
EPA |
Condition: |
New |
Brand: |
CF Copy |
Product Description

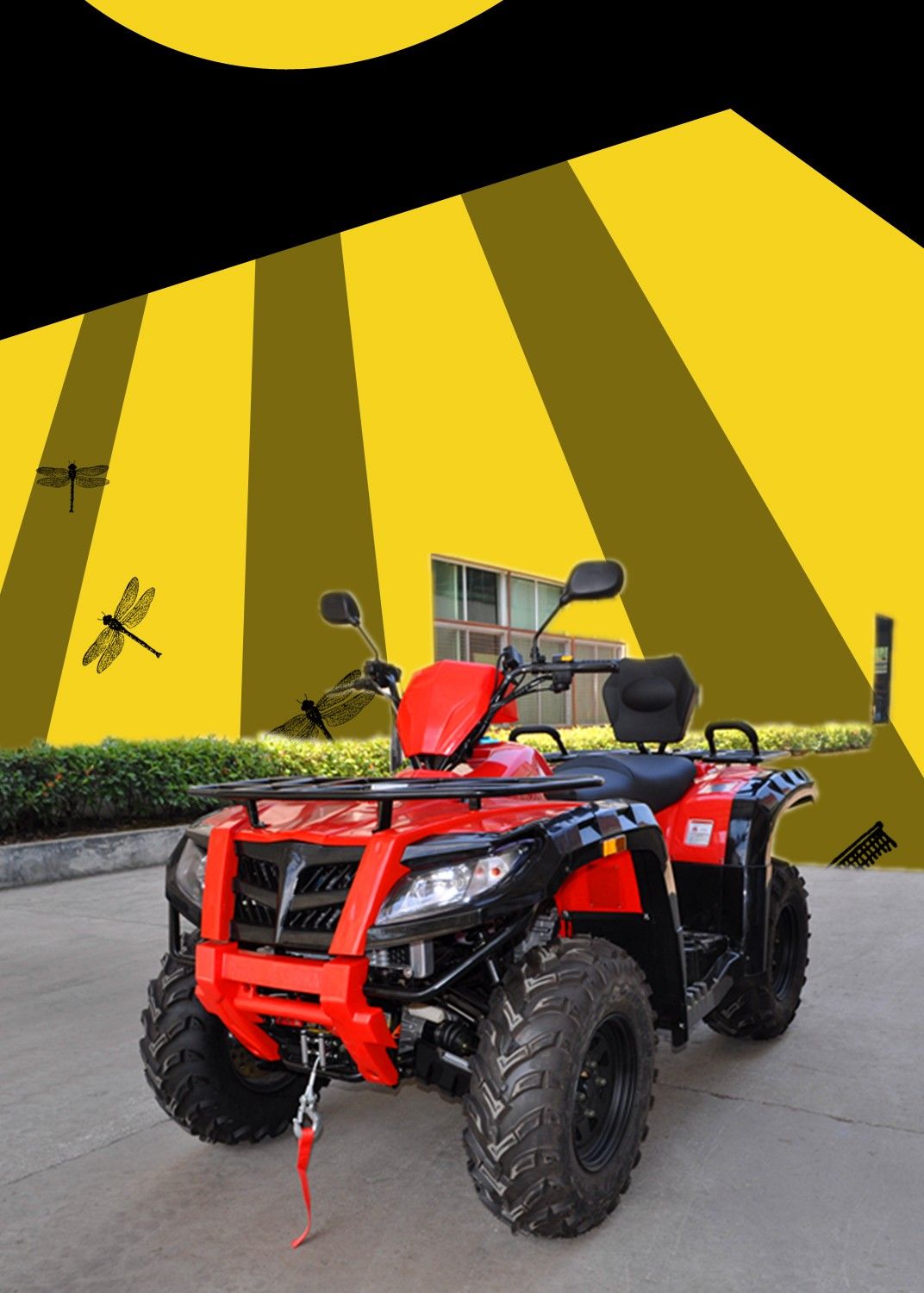

Our ATV SQ500ST-4 designed with the latest technology is suitable for recreation and competition. It is equipped with Water-cooled 500CC engine, single-cylinder, four-stroke engine and convenient electric start. It is fixed with front and rear shock absorber to improve comfort during driving. Its front wheel is fixed with drum type brake and its rear wheel with top quality hydraulic disk type brake to render safe and reliable braking. Twin seat are convenient for you and your friend to enjoy together.
The car is deluxe, artistic, dynamic, and attractive.
TECHNICAL FEATURES OF ATV "RYS 500". |
1. Main features and dimensions | | | |
Seat capacity (number of places), people. | | 2 | 2 |
Unequipped (dry) weight, kg, not more then | (), | 364 | 364 |
Equipped weight, kg, not more then | , | 380 | 380 |
Notice - equipped weight - ATV with fuel, oil and instrument. | () | 433 | 433 |
Max weight of ATV, kg, not more then | , | 710 | 710 |
Dimensions, mm: | (mm) | | |
- length | | 2330 | 2330 |
- width | | 1185 | 1185 |
- height | | 1330 | 1330 |
Wheel base, mm | (mm) | 1490 | 1490 |
Front track / rear track, mm | /(mm) | 926835 | front 926/rear 835 |
2. Engine | | | |
Model | | SQ188MR-2 | SQ188MR-2 |
Type | | \\, | four stroke,water cooled |
Cylinder | | | Single cylinder |
Working capacity of cylinder, cm 3 | | 493ml | 493ml |
Max power, kW (h.p.) | | 23kw(6300r/min) | 23kw(6300r/min) |
Max torque H@m (min -1 ) | | 250N.m(660r/min) | 250N.m(660r/min) |
Compression ratio | | 10.9:1 | 10.9:1 |
Oil-pressure: | | 8kgf | 8kgf |
Fuel type: | | 90# | 90# |
Carburetor | | | vacuum diaphragm |
Air filter | | | Adsorption type |
Coolant | | + | Water & oil cooling |
Ignition system | | CDI | CDI |
Start system | | \ | Electric start \ hand starting |
3. Transmission | | | |
Shifting way | | | Shaft drive |
Type | | | automatic |
Gear box | | | external |
Clutch | | CVT | CVT |
Brake system | | 23 | 2 Torr 3 hydraulic brake |
- working | | | Linkage |
- parking | | () | Mechanical park brake ( handbrake ) |
4. Undercarriage | | | |
Front suspension | | | Independent suspension |
Travel of front suspension, mm | (MM) | 90 | 90 |
Rear suspension | | | Independent suspension |
Travel of rear suspension, mm | (MM) | 110 | 110 |
Tires | | 25x8-12 25x10-12 | front25x8-12 rear25x10-12 |
5. Refill capacities | | | |
Fuel tank, L | (L) | 17 | 17 |
Engine case, L | (L) | 2.1L | 2.1L |
Front differential, cm 3 | cm3 | 330 | 330 |
Rear reducer, cm 3 | cm3 | 165 | 165 |
Engine cooling system, L | (L) | 0.39 | 0.39 |
Brake system, L | (L) | DOT-3 | DOT-3 |
