Home Jinhua SQ Motortech Co., Ltd. 500cc 4-Stoke Water Cooled EEC & EPA ATV
500cc 4-Stoke Water Cooled EEC & EPA ATV
| Price: | US $ 3200-3300/Piece |
|---|---|
| Trade Terms: | FOB |
| Min Order: | 4/Piece |
| Pay Type: | T/T |
Specifications
| Prod Model: | 500ST-2 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission Type: | Automatic |
| Engine Type: | 4 Stroke |
| Structure: | Two Side Doors |
| Displacement: | >400CC |
| Transmission System: | Shaft Drive |
| Fuel: | Gas / Diesel |
| Brake Type: | Disc Brake |
| Maximum Speed: | 50-75 km/h |
| Power: | >1000W |
| Condition: | New |
| Brand: | CF Copy |
| Certification: | EEC&EPA |
Product Description

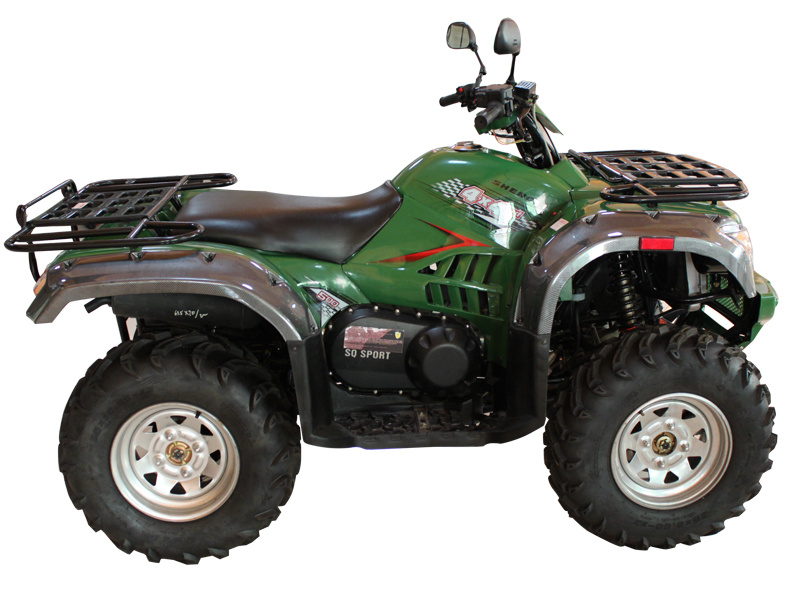

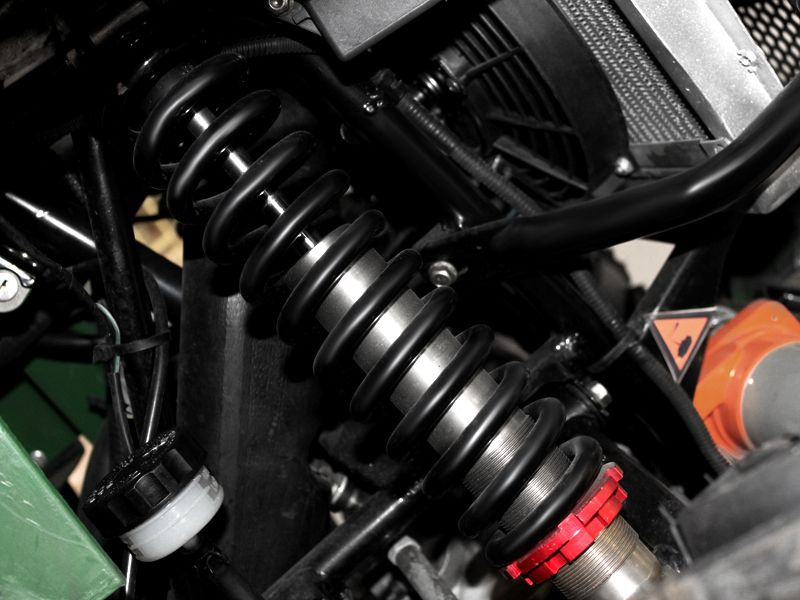

Our ATV SQ500ST designed with the latest technology is suitable for recreation and competition. It is equipped with Water-cooled 500CC manual, single-cylinder, four-stroke engine and convenient electric start. It is fixed with front and rear shock absorber to improve comfort during driving. Its front wheel is fixed with drum type brake and its rear wheel with top quality hydraulic disk type brake to render safe and reliable braking.The car is deluxe, artistic, dynamic, and attractive.
| Product Type | 500ATV or tracked vehicle | Engine Mode | SQ500ST-2 |
| Overall dimension (L × W × H) | 2085*1200*1274mm | Engine Type | Water-cooled 500CC manual; four-stroke; single-cylinder |
| Fuel Type | unleaded petrol above 90 # | ||
| Wheelbase | 1400mm | ||
| Max Load | 570 kgs | Engine Displacement | 498ml |
| Curb Weight | 460kgs | Engine Max Power | 19.6kw (4500r/min ± 5%) kw / r / min |
| The Max Speed | ≥ 90km / h | Corresponding Speed | |
| Brake Control Method (front / rear) | hand / foot movement | Engine Rated Power\ Corresponding Speed | 16kw (4500r/min ± 5%) kw / r / min |
| Ignition mode | C.D.I | ||
| Petrol tank capacity | 13L | Max Engine Torque \ Corresponding Rotational Speed | 39N.m (2700~3000r/min ± 5%) nm / r / min |
| Battery Specifications | 12V36Ah | ||
| Transmission Output Mode: | shaft drive | Clutch Type | Single-plate, wet spring |
| Stalls | 5 files. 2 forward, one back, a neutral gear, a parking stall | Starting Way | Electric start pull start |
| Idle Speed | :1500 ± 150 r / min | Oil Grade | SF 15W/40 |
| Drive Mode | Four Drivers | Compression Ratio: | 8.6:1 |
| Max Climbing Degree | 30 degrees | The Lowest Ruel Consumption Rate | > 329 g / kw/h |
| Product Type | 500ATV or tracked vehicle | Engine Mode | SQ500ST-2 |
|
Overall dimension (L × W × H) |
2085*1200*1274mm | Engine Type |
Water-cooled 500CC manual; four-stroke; single-cylinder |
| Fuel Type |
unleaded petrol above 90 # |
||
| Wheelbase | 1400mm | ||
| Max Load | 570 kgs | Engine Displacement | 498ml |
|
Curb Weight |
460kgs | Engine Max Power |
19.6kw (4500r/min ± 5%) kw / r / min |
|
The Max Speed |
≥ 90km / h | Corresponding Speed | |
| Brake Control Method (front / rear) | hand / foot movement |
Engine Rated Power\ Corresponding Speed |
16kw (4500r/min ± 5%) kw / r / min |
| Ignition mode | C.D.I | ||
| Petrol tank capacity | 13L |
Max Engine Torque \ Corresponding Rotational Speed |
39N.m (2700~3000r/min ± 5%) nm / r / min |
| Battery Specifications | 12V36Ah | ||
| Transmission Output Mode: | shaft drive | Clutch Type | Single-plate, wet spring |
| Stalls | 5 files. 2 forward, one back, a neutral gear, a parking stall | Starting Way | Electric start pull start |
| Idle Speed | :1500 ± 150 r / min | Oil Grade | SF 15W/40 |
| Drive Mode | Four Drivers |
Compression Ratio: |
8.6:1 |
| Max Climbing Degree | 30 degrees |
The Lowest Ruel Consumption Rate |
> 329 g / kw/h |
