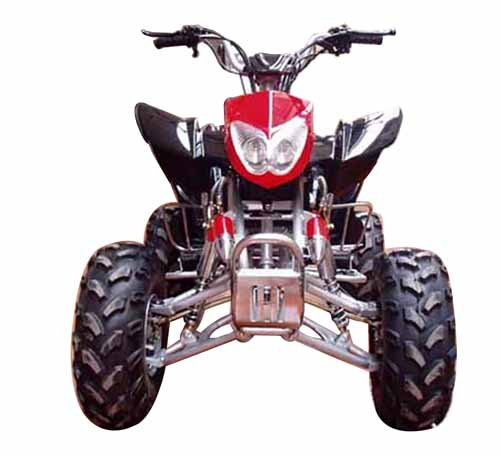

200cc ATV (TS-ATV200ST-5)

Specifications

Prod Model:	TS-ATV200ST-5

Product Description

1) Engine type:
Single cylinder, air -cooled, 4 stroke,
2) Battery: 12V, 9Ah
3) Maximum power: 12.0kw / 8, 000
4) Maximum torque: 15.0 / 6, 000
5) Starting system: Electric start
6) Seat height (mm): 720
7) Ground clearance (mm): 120
8) Brake (front/rear): Drum / disk
9) Front tire: 19 x 7-8
10) Rear tire: 18 x 9.5-8
11) Ignition type: CDI
12) Fuel tank capacity (L): 4.5
13) Front suspension: Air- shock, Double swing arm
14) Rear suspension: Single suspension
15) Transmission system: Chain driven
16) Max. Speed (km/h): 60
17) Net weight (kg): 140kg
18) Dimensions (L x W x H): 1560 x 980 x 1000mm

Outer packing:
Carton dimensions: 1550 x 940 x 810mm
Conveyance: Qty/20' FCL: 14pcs, Qty/40' HQ: 45pcs
