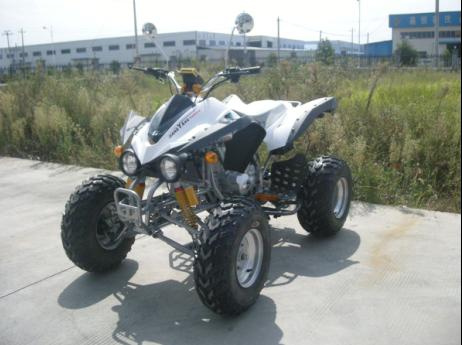

200cc/250cc Water Cooled ATV with EEC (TS200E-A10)

Specifications

Prod Model:	TS200E-A10

Product Description

Features:
1) Dimensions (L x W x H): 1, 680 x 1, 115 x 1, 120mm
2) Wheelbase: 1, 160mm
3) Engine type: 200cc, single cylinder, water-cooling, 4-stroke
4) Start mode: Electric
5) Power: 10.5kW/7, 500rpm
6) Max. Torque: 12.1N. M/6, 500rpm
7) Max. Speed: 75km/h
8) Min. Ground clearance: 120mm
9) Dry weight: 155kg
10) Transmission mode: Chain
11) Break type (F/R): Disc/disc
12) Power source: 12V, 9A
13) Climbing degree: 20 degrees
14) Fuel tank capacity: 5.5L
15) Front hanging: Integral ballonet absorber
16) Rear hanging: Inner ballonet absorber
17) Tires:
A) Front wheels: 21 x 7 - 10
B) Rear wheels: 20 x 10 - 10
18) Cylinder size: 63.5 x 62.2mm
19) Displacement: 197ml
20) Transmission: 4 gears with one reverse gear, manual clutch
21) Seat height: 880mm
22) Min. Turning radius: 2, 650mm
23) Parking trig: Mechanical lock
24) Ignition mode: CDI
25) Load capacity: 150kg
26) Engine oil: 1.1L
27) Gas cylinder number: 1
28) Max. Number of riders: 1
29) Lubrication: Press splash
30) Compression proportion: 9.2: 1

Outer packing:
Carton dimensions: 148 x 95 x 88cm

Conveyance:
Qty/20' GP: 20 units
Qty/40' GP: 44 units
Qty/40' HQ: 66 units
