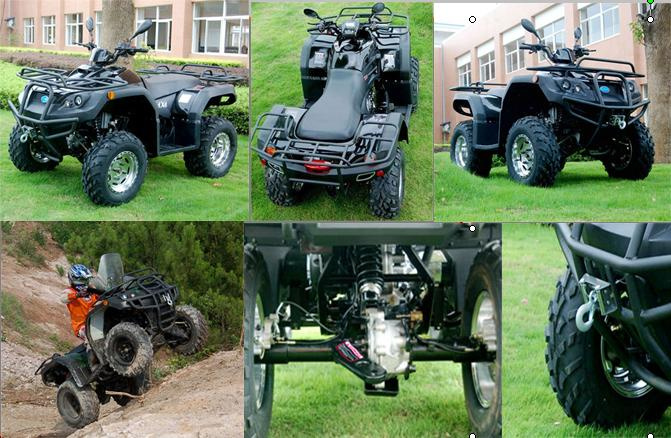

ATV Shaft, 4x4, Front Differential Device W/Lock (TSATV-Q300)
| Price: |
Negotiable
|
| Min Order: |
1 |
| Pay Type: |
T/T |
Specifications
Product Description
TSATV-Q300
| 1) Engine type: 300cc, water-cooled | | single cylinder, 4 strokes, with H/L,N,R gear | | 2) Displacement: 278ml | | 3) Max. power: 16.0/6,500, Kw(r/min) | | 4) Max. torque: 23.0/5,500, N.m(r/min) | | 5) Compression rate: 10:1 | | 6) Drive system: shaft, 4X4, front differential device w/lock | | 7) Clutch: automatic clutch | | 8) Brake: front and rear hydraulic disc brake | | 9) Tire: 25X8.0-12(F), 25X10-12(R) | | 10) Max. speed: 75km/h | | 11) Battery: 12V x 14Ah | | 12) Seat height: 850mm | | 13) Wheel base: 1280mm | | 14) Ground clearance: 180mm | | 15) Suspension: front and rear hydraulic suspension | | 16) Ignition type: TCI | | 17) Start system: electric start | | 18) Dimensions: 2,050 X 1,230 X 1,140mm | | 19) Max. load: 200Kgs |
Carton size: 2310X1250X860 |
| 2310X1250X860 (Disassemble tire) |
| |
| 8pcs/20”,18pcs/40”,22pcs/40”HQ |
| N.W: 315Kgs |
| G.W: 355Kgs |
