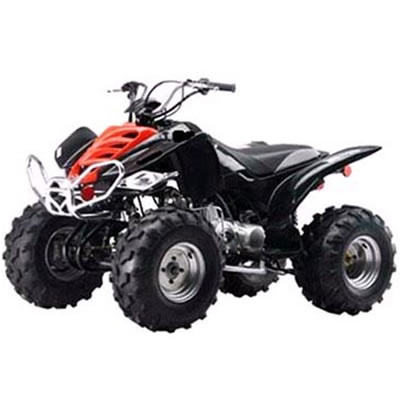

150CC / 110CC ATV Raptor (ATV-150)

Specifications

Prod Model:	ATV-150

Product Description

ATV-150
Engine Model 1P57QMJ
Engine Style Single Cylinder, Air-cooled, 4-stroke
Bore "Stroke 57.4"57.8(mm "mm)
Ignition C.D.I.
Lubrication Pressure/ Splash
Max. Power 7.0/7000+/-150(Kw/r/min)
Max. Torque 8.8/5500+/-150(N.m/r/min)
Impression Ratio 8.8 :1
Starting Type Electric
Max. Speed 55(Km/H)
Oil Consumption <365(g/Kw"H)
Max. Noice 80(dB)
Clutch
Transmission CVT
Parameter of Motorcycle
Dimension 1625"860"960(L*W*H mm)
Wheel Base 1050(mm)
Gross Weight 145(Kg)
Dry Weight 125(Kg)
Transmission Type
Tyre and Rim F. :19*7-8 / R. P:18*9.50-8
Brake Style F. Drum /R. Dick
Absorber Style F. :Independent Hanging / R. :Middle Absorber
Displacement 149.5ml
Oiltank Capacity 7.5(L)
Climbing Ability >/=25"
Max. Load 95(Kg)
Packing Vol, 1485"835"780(L"W"H mm)
Container Capacity 40":66 Unit 20":30Unit
