Specifications
Prod Model: |
QW-ATV-02E |
Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
8' Wheel: |
Rear Carry Racks Available |
Transmission System: |
Chain Drive |
Transmission Type: |
Semi-Automatic |
Certification: |
CE |
Engine Type: |
4 Stroke |
Fuel: |
Gas / Diesel |
Displacement: |
110CC/125CC/150CC |
Structure: |
off Road |
Brake Type: |
Front Drum Brake & Rear Hydraulic Disc Brake |
Product Description

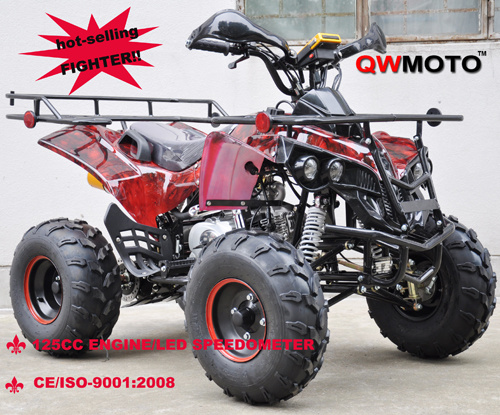

125CC 150CC Sports Quad ATV CE (QWATV-02E)
Model No: QW-ATV-02E
Engine: Chongqing 125cc/150cc Air-cooled 4 Stroke, Single Cylinder, LED speedometer, handle protector
Starting Method: Electric
Ignition Mode: CDI
Fuel Tank Capacity: 3L
Fuel: Straight Unleaded Petrol
Transmission: Semi Auto, 3 Forward and 1 Reverse Gear with Neutral
Drive System: Chain
Throttle Control: Thumb throttle (screw restrictable to limit max throttle)
Suspension Front: Dual A arm spring shocks
Rear: Large rear shock
Maximum Speed: 65km/hr+
Front Brakes: Dual Drum Brake System
Rear Brakes: Drilled disc hydraulics (controlled by right foot brake)
Maximum Load: 100kg
Wheel Size -Front: AT 19 x 7 - 8 Rear: AT 18 x 9.5 - 8
Rider Capacity 1 person
Dimensions (L x W x H) BOX: 1390 x 840 x 650 (mm)
BIKE: 1340 x 990 x 1030 (mm)
Seat Height: 720mm
Weight Gross: 105kg Net: 95kg
Conveyance Qty:
20"GP: 33pcs, 40"HQ: 88pcs
Colors available: Red/black/green/blue/yellow etc...
