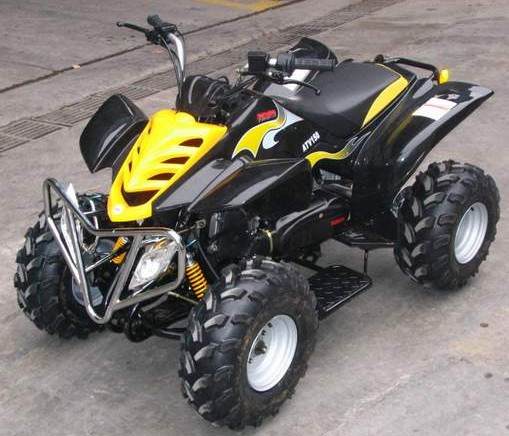

110cc Single-Cylinder with Air-Cooled 4-Stroke ATV / Quad Bike (ATV-020)
| Price: | Negotiable |
|---|---|
| Min Order: | 1 |
Specifications
| Prod Model: | ATV-020 |
|---|
Product Description
Name: ATVItem No.: ATV-020
Details: Type: ATV-020 110cc Chain drive
1) Dimensions (LXWXH): 1260X810X860mm
2) Max speed: 40km/h
3) Engine type: single-cylinder with air-cooled 4-stroke
4) Compressing ratio: 9.0: 1
5) Fuel tank: 7.8L
6) Ignition: CDI
7) Starting system: Electric
8) Ground clearance: 130mm
9) Wheelbase: 1040mm
10) Dry weight: 110kg
11) Steering bar angle: 15 degree
12) Front brake type: Mechanical drum
13) Rear brake type: Hydraulic disc
14) Type size: (front/rear): 19X7-8/18X9.5-8
15) Displacement: 107ml/86ml
16) Max power: 5.2kW/7500/4.3kW/7500
17) Max torpue: 7.0Nm/5.8Nm
18) Idle speed: 1600r/min
19) Clutch: Wet centrifugal slice
20) Spark plug type: A7TC
21) 20GP: 22pcs
22) 40GP: 46pcs
23) 40HQ: 69pcs
