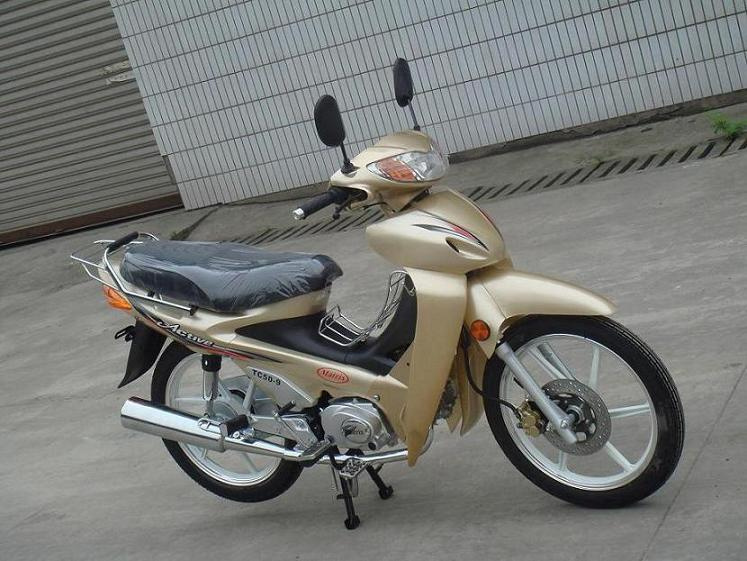

110CC/70CC/50CC Cub Motorcycle (SJ110-9)
| Price: | Negotiable |
|---|---|
| Trade Terms: | By Sea |
| Min Order: | 32Units |
Specifications
| Prod Model: | SJ110-9 |
|---|
Product Description
MODEL: SJ110-9Main Feature: 110cc, 4 stroke, electric&kick start, automatic clutch, front disc &rear drum brake, alloy wheel
Specifications:
Engine type: Single cylinder, air cooling, 4 stroke
Clutch: Automatic
Ignition method: C. D. I.
Start method: Electric&kick
Transmission: Chain
Displacement(ml): 107
Bore*stroke(mm): 52.4*49.5
Compression ratio: 8.8: 1
Rated power(kw/r/min): 5/7500
Maximum torque(N. M/r/min): 7/5500
Lubrication: Splash
Gear: 4
Dimensions(L*W*H)(mm): 1960*695*1070
Wheel base(mm): 1208
Seat height(mm): 780
Min. Turning radius(mm): 1800
Min. Ground clearance(mm): 130
Rider capacity: 2
Brake: Front disc&rear drum
Front wheel: 2.50-17
Rear wheel: 2.75-17
Fuel tank capacity(L): 3.5
Engine oil capacity(ml): 800
Climbing capacity: 15
Max. Load(kg): 110
Max. Speed(kw/h): 80
Net weight(kg): 92
Gross weight(kg): 112
