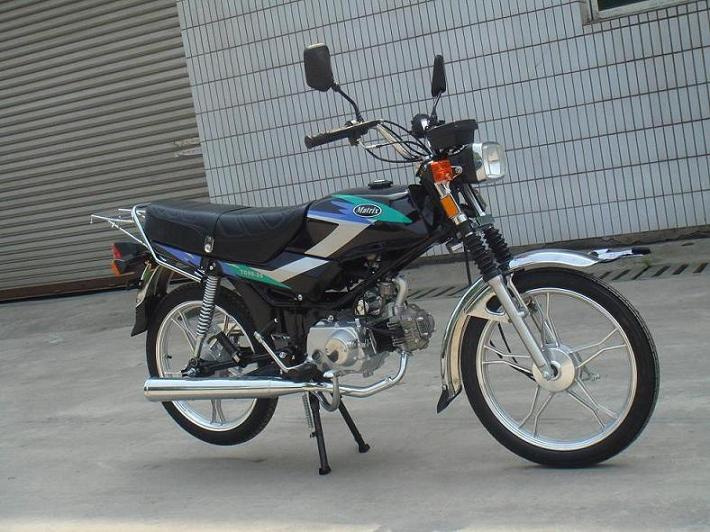

110CC/70CC/50CC Motorcycle(SJ110-25)
| Price: | Negotiable |
|---|---|
| Trade Terms: | By Vessel |
| Min Order: | 60Units |
Specifications
| Prod Model: | SJ110-25 |
|---|
Product Description
MODEL: SJ110-25Main Feature: 110cc, 4 -stroke, electric & kick start, manual clutch, front & rear drum brake, alloy wheel
Specifications:
Engine type: Single cylinder, air cooling, 4 stroke
Clutch method: Manual
Ignition method: C. D. I.
Start method: Electric & kick start
Transmission: Chain
Displacement(ml): 109
Bore*stroke(mm): 52.4*49.5
Compression ratio: 8.8: 1
Rated power(kw/r/min): 5/7500
Maximum torque(N. M/r/min): 7/5500
Lubrication: Splash
Gear: 4
Dimensions(L*W*H)(mm): 1930*800*1120
Wheel base(mm): 1220
Seat height(mm): 850
Min. Turning radius(mm): 1900
Min. Ground clearance(mm): 200
Rider capacity: 2
Brake: Front&rear drum
Front wheel: 2.50-18
Rear wheel: 3.00-17
Fuel tank capacity(L): 6.5
Engine oil capacity(ml): 800
Climbing capacity: 15
Max. Load(kg): 90
Max. Speed(kw/h): 75
Net weight(kg): 84
Gross weight(kg): 104
