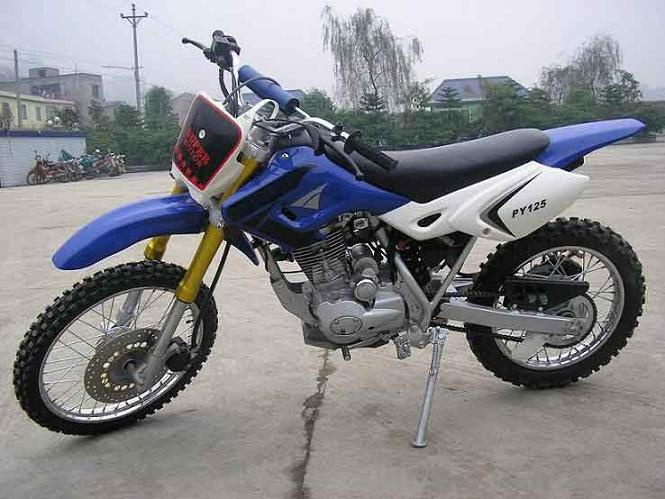

125CC/150CC/200CC Off Road Motorcycle (SJ125PY-6)

Specifications

Prod Model:	SJ125PY-6

Product Description

MODEL: SJ125PY-6

Main Feature: 125cc, electric & kick start, manual clutch, front disc & rear drum brake, spoke wheel, front up-side-down shock absorbers

Specifications:
Engine type: Single cylinder, air cooling, 4 stroke
Clutch method: Manual clutch
Ignition method: C. D. I.
Start method: Electric & kick start
Transmission: Chain
Displacement(ml): 124
Bore*stroke(mm): 56.5*49.5
Compression ratio: 9.0: 1
Rated power(kw/r/min): 7.2/8500
Maximum torque(N. M/r/min): 8.5/6000
Lubrication: Splash
Gear: 5
Dimensions(L*W*H)(mm): 1900*840*1080
Wheel base(mm): 1310
Seat height(mm): 820
Min. Turning radius(mm): 2000
Min. Ground clearance(mm): 190
Rider capacity: 1
Brake: Front disc&rear drum brake
Front wheel: 70/100-19
Rear wheel: 90/100-16
Fuel tank capacity(L): 7
Engine oil capacity(ml): 800
Climbing capacity: 20
Max. Load(kg): 100
Max. Speed(kw/h): 85
Battery: 12V6.5Ah
Packing size(L*W*H)(mm): 1620*430*860
Net weight(kg): 103.5
Gross weight(kg): 123.5
