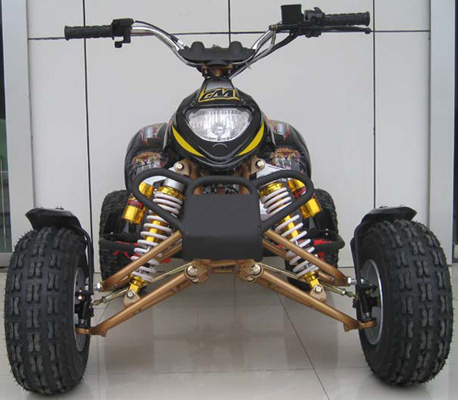

Home China Shineng Bike Industry Co., Ltd. Sport ATV
Specifications
| Prod Model: | SN-125ATV-SG |
|---|
Product Description
110CC&125CC engine1) Dimension(mm): 1300x945x910
2) Wheelbase(mm): 920
3) Min. Ground clearance(mm): 90
4) Seat height(mm): 680
5) Streeing bar angle: 30 degree
6) Turning circle dia. (mm): 4000
7) Front brake/rear brake: Drum/disc
8) Net weight(kg): 70
9) Max. Loading capacity(kg): 75
10) Max. Speed(km/h): <=50
11) Fr. /Rr. Tread(mm): 800/615
12) Fr. /Rr. Tyre size: 15x5-7/15x6.5-7
13) Fr. Absorber style: Paratactic Air cell absorber 325mm
14) Rr. Absorber style: Hydraulic Spring Absorber 275mm(coil spring hydraulic drive)
15) Brake mode: Rear Hydraulic Disk Brake (Drift)
16) Engine type: Horizontal Single Cylinder, aircooled, Automatic clutch, 110CC, CVT with reverse gear, mark the sign as the same with 125CC
17) Max torque(N. M/r/min): 6.8/5000/9.5/6000
18) Max power(kw/r/min): 5.2/7500/6.8/7500
19) Start mode: Electric start
20) Valve clearance(mm): 0.6-0.8
21) gnition mode: CDI
22) Transmission: Chain
23) Fuel tank capacity(L): 2.0
24) Oil type: 93#
25) Lubricating oil type: SAE15W/40-se
Outer packing:
Carton dimensions: 1, 160 x 760 x 650mm
Conveyance:
Qty/20' FCL: 43PCS
Qty/40' FCL: 78PCS
Qty/40' HQ: 120PCS
Color: Red/yellow/blue/green/camouflage...And so on
