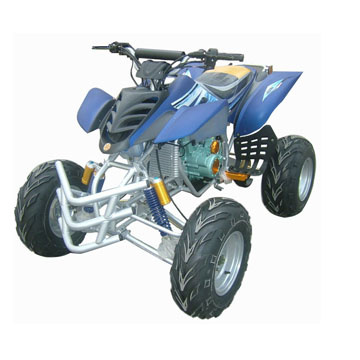

250cc ATV (SN-ATV250S-11)

Specifications

Prod Model:	SN-ATV250S-11

Product Description

Specifications:
1) Engine type: Single cylinder, air cooling, four-stroke
2) Power: 11. 5kW/6, 500rpm
3) Max. Torque: 17. 5N. M/5, 500rpm
4) Min. Ground clearance: 200mm
5) Wheel base: 1, 260mm
6) Fuel tank capacity: 9. 8L
7) Transmission mode: Chain
8) Starting mode: Electric
9) Tires:
A) Front wheels: 23 x 7-10
B) Rear wheels: 22 x 10-10
10) Max. Speed: ≥75km/h
11) Break type (F/R): Disc/disc
12) Power source: 12V, 14Ah
13) Height of seats: 740mm
14) Dry weight: 190kg
15) Load capacity: 150kg
16) Climbing degree: ≥30
17) Front hanging: Integral ballonet absorber
18) Rear hanging: Inner ballonet absorber
19) Cylinder size: 67 x 65mm
20) Displacement: 230ml
21) Transmission: 4 gears with reverse, manual clutch
22) Min. Turning radius: 2, 750mm
23) Parking trig: Hydraulic pressure lock
24) Ignition mode: CDI
25) Engine oil: 1L
26) Max. Number of riders: 1
27) Lubrication: Press splash
28) Compression proportion: 9. 2: 1
29) Gas cylinder number: 1
30) Product dimensions (L x W x H): 1, 870 x 1, 150 x 1, 160mm

Outer packing:
Carton dimensions: 1, 690 x 1, 150 x 880mm

Conveyance:
Qty/20' GP: 12 units
Qty/40' GP: 28 units
Qty/40' HQ: 42 units
