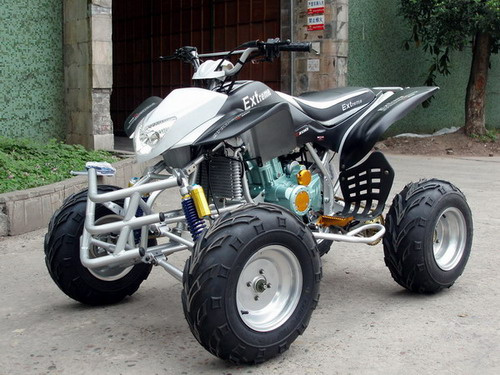

ATV (SN-ATV200S-7)

Specifications

Prod Model:	SN-ATV200S-7

Product Description

Specifications:
1) Engine type: single cylinder, water-cooled, 4-stroke
2) Power: 9.5kW / 7,500rpm
3) Max. torque: 12.1N.m / 6,500rpm
4) Min. ground clearance: 100mm
5) Wheel base: 1,160mm
6) Fuel tank capacity: 5.5L
7) Transmission mode: chain
8) Start mode: electric
9) Tires:
a) Front wheels: 21 x 7-10
b) Rear wheels: 20 x 10-10
10) Max. speed: ≥80km/h
11) Break type (F/R): disc / disc
12) Power source: 12V, 9Ah
13) Height of seats: 850mm
14) Dry weight: 167kg
15) Load capacity: 105kg
16) Climbing degree: ≥20
17) Front hanging: double arm-swing
18) Rear hanging: integral
19) Cylinder size: 63.5 x 62.2mm
20) Displacement: 197ml
21) Transmission: 4 gears with one reverse gear, manual clutch
22) Min. turning radius: 2,650mm
23) Parking trig: mechanical lock
24) Ignition mode: CDI
25) Engine oil: 0.9L
26) Max. number of riders: 1
27) Lubrication: press splash
28) Compression proportion: 9.2: 1
29) Gas cylinder number: 1
30) Product dimensions (L x W x H): 1,680 x 1,115 x 1,120mm

Outer packing:
Carton dimensions: 1,480 x 850 x 880mm

Conveyance:
Qty/20' FCL: 20 units
Qty/40' FCL: 44 units
Qty/40' HQ: 66 units
