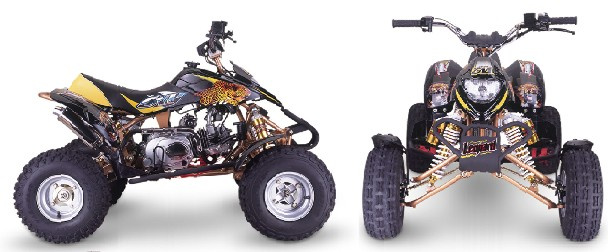

ATV (SN-125ST)

Specifications

Prod Model:	SN-125ST

Product Description

Dimension(mm): 1260X970X880
Wheelbase(mm): 880
Min.Ground clearance(mm): 90
Seat height(mm): 610
Net weight(kg): 88
Max.Loading capacity(kg): 75
Max speed(km/h):≤40
Fr./Rr.Tread(mm): 790/660
Fr./Rr.Tyre size:15x5-7/15x6.5-7
Fr.Absorber style:Paratactic Air cell absorber 325mm
Rr.Absorber style:Hydraulic spring absorber 275mm
Brake mode: Rear Hydraulic Disk brake(Drift)
Engine type: Horizontal Single cylinder,air-cooled, CVT with reverse gear(or automatic clutch, 3-speed with reverse gear)
Start mode: Electric start
Valve clearance(mm): 0.6-0.8
Lgnition mode: CDI
Transmission: Chain
Fuel tank capacity(L): 2.0
Oil type: 93#
Lubricating oil type: SAE10W4
