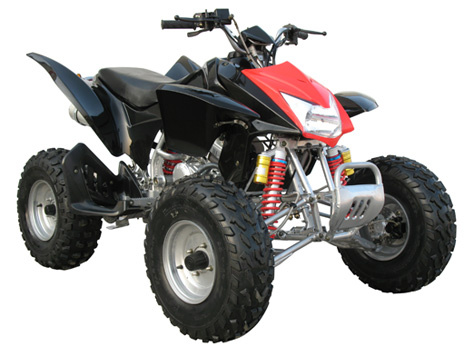

EPA ATV 250cc (ATV-3250A)

Specifications

Prod Model:	ATV-3250A

Product Description

Features:
1) Max. Load: 165kg
2) Engine: Single cylinder, 4-stroke, water cooled, 250cc, manual clutch
3) Brake (front/rear): Oil disc brake
4) Start method: Electric start
5) Lubrication: Press/splash
6) Ignition method: CDI
7) Suspension:
A) Front: Independent suspension
B) Rear: Swing arm suspension
8) Battery capacity: 12V/9AH
9) Fuel tank volume: 12L
10) Engine oil capacity: 1.6L
11) Gear oil capacity: 0.2L
12) Size:
A) Overall height: 1, 160mm
B) Overall length: 1, 940mm
C) Overall width: 1, 050mm
13) Tire: Front tire: 23 x 7-10
Rear tire: 22 x 10-10
14) Wheelbase: 1230mm
15) Ground clearance: 145mm
16) Compression ratio: 10.5: 1
17) Max power: 11/7500(kw/r/min)
18) Max torque: 15/6000(N. M/r/min)
19) Bore x stroke: 65.5 x 66.2

Outer packing: 1pc/ctn
N. W.: 195kg
G. W.: 213kg

Conveyance:
Qty/40' HQ: 42pcs
