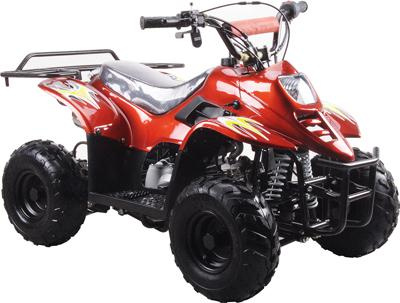

Home Zhejiang Qiye Scooter Co., Ltd. ATV (ATV-3050C)
Specifications
| Prod Model: | ATV-3050C |
|---|
Product Description
Features:1) Model no: ATV-3050C2) Engine: 110cc ,4 stroke,air cooled,automatic
3) Max. speed: 55km/h
4) Ignition method: CDI
5) Starting method: electric start
6) Transmission method: chain drive
7) Tire: a) Front tire: 145/70-6 b) Rear tire: 145/70-6
8) Wheelbase: 800mm
9) Ground clearance: 70mm
10) Brake way: Front/Rear : hub/hydraulic disc
11) Compression ratio: 9.0:1
12) Max. torque: 6.18/5500+_500 (N.m/r/min)
13) Bore x stroke: 52.4 x 49.5mm
14) Battery: 12V, 4Ah
15) Max. load: 60kg
16) Model size: 1230 x 740 x 800mm
N.W.: 154 lbs
G.W.: 176 lbs
Conveyance:Qty/40' HQ: 136pcs
