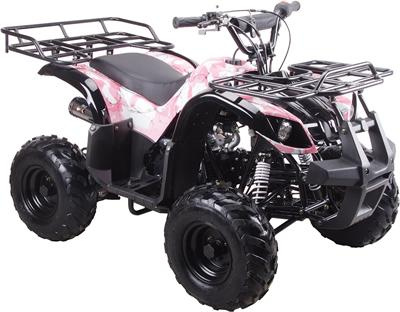

Home Zhejiang Qiye Scooter Co., Ltd. ATV (ATV-3125R)
Specifications
| Prod Model: | ATV-3125R |
|---|
Product Description
Features:1) Model no: ATV-3125R
2) Engine: 125cc forward, neutral, reverse gear
3) Max. speed: 65km/h
4) Ignition method: CDI
5) Starting method: electric start
6) Transmission method: chain drive
7) Tire: a) Front tire: 19x7.0-8 b) Rear tire: 19x7.0-8
8) Wheelbase: 880mm
9) Ground clearance: 90mm
10) Brake way: rear brake: disc
11) Compression ratio: 9.0: 1
12) Max. power: 5.0kW/7, 500r/min
13) Max. torque: 7.0N. m/5, 500r/min
14) Bore x stroke: 52.4 x 49.5mm
15) Battery: 12V, 5Ah
16) Max. load: 70kg
17) Model size: 1500x830x960mm
Packing: Size: 1190x720x640mm
N. W.: 98kg G. W.: 118kg
Conveyance: Qty/40' HQ: 115pcs
