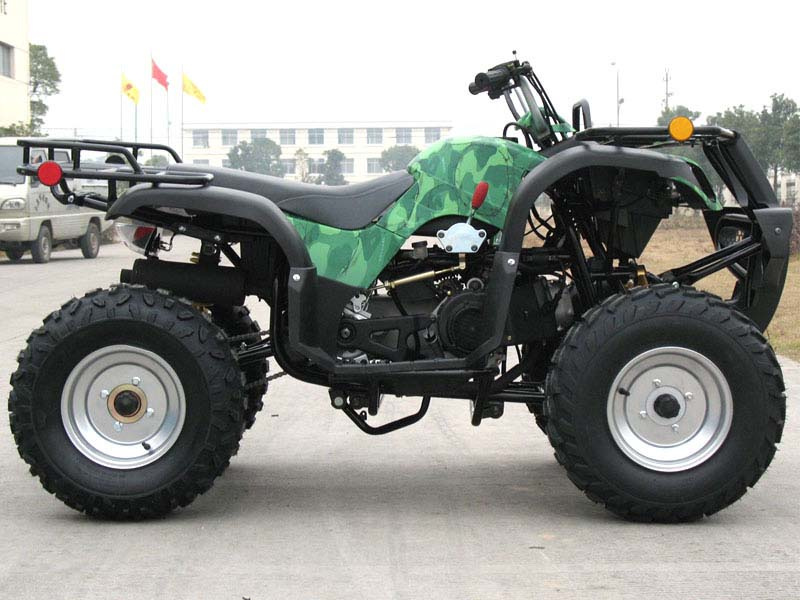

Home Zhejiang Qiye Scooter Co., Ltd. ATV (ATV-3150DX)
Specifications
| Prod Model: | ATV-3150DX |
|---|
Product Description
1) Model no.: ATV-3150DX2) Engine: 150cc air cooled, single cylinder, CVT system
3) Max. speed: 58km/h
4) Ignition method: CDI
5) Start way: electric start and kick starter
6) Transmission method: chain
7) Front tire: 23 x 7-10
8) Rear tire: 22 x 10-10
9) Wheelbase: 1, 100mm
10) Ground clearance: 165mm
11) Brake: a) Front brake: drum brake
b) Rear brake: disc brake
12) Compression ratio: 9.5: 1
13) Max. power: 6.0/8, 000 (kW/r/min)
14) Max. torque: 7.8/6, 500 (N. m/r/min)
15) Bore x stroke: 57.4 x 57.8
16) Max. load: 90kg
17) Full tank volume: 7.8L
18) Battery: 12V, 9Ah
19) Net weight: 174kg
20) Gross weight: 203kg
21) Model dimensions: 1, 770 x 990 x 1, 025mm
Packing:
Dimensions: 1, 540 x 810 x 750mm
Conveyance:
Qty/40"HQ: 57pcs
