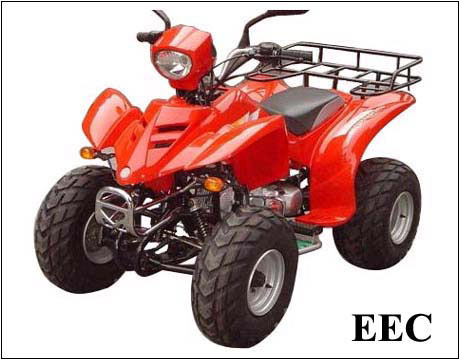

EEC ATV (XS-ATV002)

Specifications

Prod Model:	XS-ATV002

Product Description

XS-ATV002

40HQ:66pcs
Engine Type: 4-Strokes, AirCooled
Transmission System: Shaft Drive
Bore x Stroke(mm): 52.4*49.5
Piston Displacement: 107
Maximum Power(kw/r/min): 5.5/8000
Maximum Torque(N.m./r/min): 6.8/5500
Starting System:Electric
Transmission: 4 Speeds,semi Automatic
Seat Height(mm): 670
Min Turning Radius(mm): 2400
Ground Clearance: 100
Brake(Front/Rear): Drum/Drum
Tyre,Fromt: 19*7-8
Tyre,Rear: 18*9.5-8
Ignition Type: C.D.I
Fuel Tank Capacity(L): 7.8
Front Suspension: Leading Arm
Rear Suspension: Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-9Ah
Max Load Capacity(kg): 85
Engine Oil Capacity(L): 0.95
Gear Oil Capacity(L): 0.15
Dry Weight(kg): 134
Rider Capacity: 1 Person
Wheel Base: 1020
Overall Height(mm): 1005
Lubrication: Pressure
Overall Length(mm): 1500v
Overall Width(mm): 910 Compression Ration: 9.1:1
Cylinder Arrangement: Single Cylinder
Packing size:1460*860*760mm
type-approval certificate: e9*92/61*0214*01
