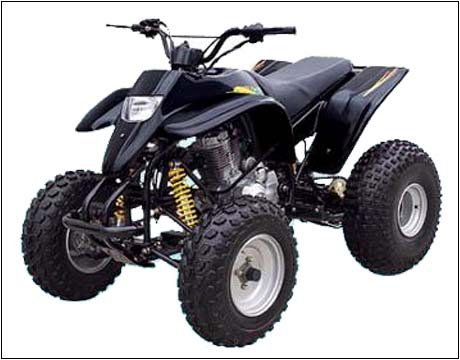

ATV Quads (XS-ATV011)

Specifications

Prod Model:	XS-ATV011

Product Description

XS-ATV011

Engine: 198cc, 4-stroke, air-cooled, single cylinder
Compressing ratio: 9.0: 1
Rated power and rotate speed: 11.0kw/8000r/min
Max torque and rotate speed: 13.0N.m/6500r/min
Ignition type: CDI
Fuel tank capacity: 8L
Driving mode: alex/chain (without reverse gear)
Starting system: electric
Gearshift mode: 5 gears/outboard reverse
Max gradability (degree): 22
Tire (front/rear): 21 x 8-10/22 x 11-8
Brake system (front/rear): drum (manual)/disc (foot)
Dimension (L x W x H): 1700 x 1020 x 1060mm
Distance (front/rear wheel): 830mm/775mm/Distance (alex): 1050mm
Max speed: >60km/h
Max loaded: 150kg
Carton size: 1670 x 1110 x 830mm
G.W./N.W.: 191/150kg
Quantity: 12pcs/20FT; 28pcs/40FT; 42pcs/40HQ
Available color: red, yellow, blue, green, black
