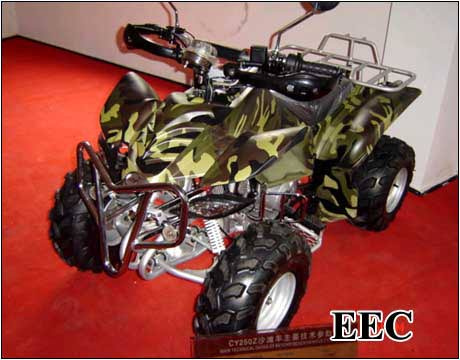

Home China Xinsheng Group Co., Ltd. EEC ATV (XS-ATV003)
Specifications
| Prod Model: | XS-ATV003 |
|---|
Product Description
XS-ATV003No. Item Description
1. Overall Dimension (L*W*H): 1680*1090*1010mm
2. Proper Mass of Empty Vehicle: 170kg
3. Max Speed: ≤75km/h
4. Climbing Ability: ≤20"
5. Specification of Front Wheel: 21*7-10, 50Kpa 6. Specification of Rear Wheel: 21*9-8, 50Kpa
7. Type of Engine: ZS161FMJ
8. Efficient Capacity: 150ml
9. Rated Power and Rotate Speed: 9.2 KW/9000r/min
10. Rated Torque and Rotate Speed: 10.5N.m/7500r/min
11. Compressing Ratio: 9.5: 1
12. Gearshift Mode: Five speed
13. Starting System: Electrical Starting
14. Cooling System: Air cooling
Additional Specification:
Engine type: Air-cooled longitudinally mounted single-cylinder four-stroke
Bore and Stroke: 61.0*51.3mm
Ignition: CDI
Starter: Electronic
Clutch: Manual
Transmission: Standard 5 speed
Drive system: Chain transmission.
Front Suspension: Upper & lower A-Arms with shock
Rear suspension: Mono shock with swing arm
Front brake: Manual mechanical drum
Rear brake: Hydraulic disc
Parking brake: Have
Turning radius: 2040mm
Fuel consumption: 3.1L
Fuel tank capacity: 7L
Max load: 200kgs
Remarks: Recommended for riders 16 years of age and older.
Available color: Blue. Yellow. Red. Black. Safe packing: Iron frame covered with carton. Loading quantity: 14units/20ft; 28units/40ft (completely assembled)
42units/40HQ (incompletely assembled, without fixing the racks, headlamp, tires and handlebar)
