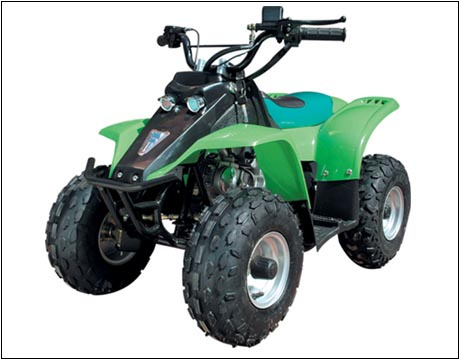

ATV Quads (XS-ATV009)

Specifications

Prod Model:	XSA-09

Product Description

XS-ATV009

50cc, Four-Stroke, auto clutch and 3 speed, rear disc brake

1) Max Speed: >30km/h
2) Climbing ability: >15"
3) Max loading: 80kg
4) Distance between axles: 690mm
5) Distance between front wheels: 420mm
6) Distance between rear wheels: 510mm
7) Ground clearance: 110mm
8) Specification of front wheel: 145/70-6
9) Specification of rear wheel: 145/70-6
10) Engine: 50cc, single-cylinder, 4 stroke
11) Displacement: 49ml
12) Rated power and rotation speed: 2.3kw/
13) Max torque and Rotate Speed: 2.7N. m/6500r/min
14) Compression ratio: 7: 1
15) Transmission: auto clutch and 3 speed, chain
16) Starting system: electric start
17) Cooling system: air cooling
18) Oil tank: 3. 4L
19) Brake: rear disc brake

Packing:
Carton: 1150 x 760 x 700mm
Dimensions: 1120 x 730 x 560mm
N. W.: 63kg
G. W.: 71kg
Container: 48pcs/20ft, 102pcs/40ft, 136pcs/40ft HQ
