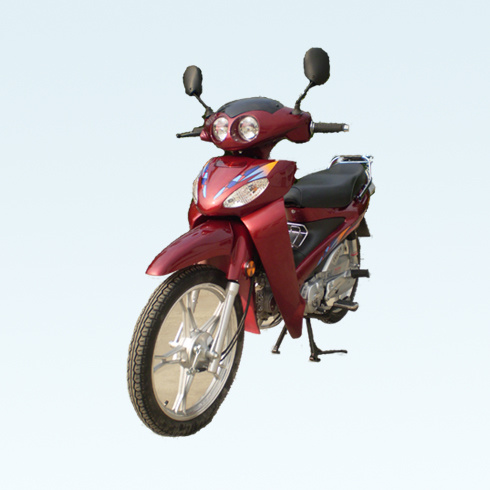

Cub (SJ110-9B)

Specifications

Prod Model:	SJ110-9B

Product Description

Feature: 110cc. 4 stroke, electric&kick start, automatic clutch, front disc&rear drum brake, acyclic gear, deluxe foot rest, rear view mirror, basket, deluxe brake pedal.

Specifications:
Engine type: Single cylinder, air cooling, 4 stroke
Clutch: Automatic
Ignition method: C. D. I.
Start method: Electric&kick
Cylinder: Single
Transmission: Chain
Displacement(ml): 107
Bore*stroke(mm): 52.4*49.5
Compression ratio: 8.8: 1
Rated power(kw/r/min): 5/7500± 500
Maximum torque(N. M/r/min): 7/5500± 500
Lubrication: Splash
Gear: 4
Dimensions(L*W*H)(mm): 1960*695*1070
Wheel base(mm): 1208
Seat height(mm): 780
Min. Turning radius(mm): 1800
Min. Ground clearance(mm): 130
Rider capacity: 2
Brake: Front disc&rear drum
Front wheel: 2.50-17
Rear wheel: 2.75-17
Fuel tank capacity(L): 3.5
Engine oil capacity(ml): 800
Climbing capacity: ≥15
Max. Load(kg): 110
Max. Speed(kw/h): 80
Battery: 12V5Ah-3B
Packing size(L*W*H)(mm): 1680*450*830
Net weight(kg): 92
Gross weight(kg): 112
