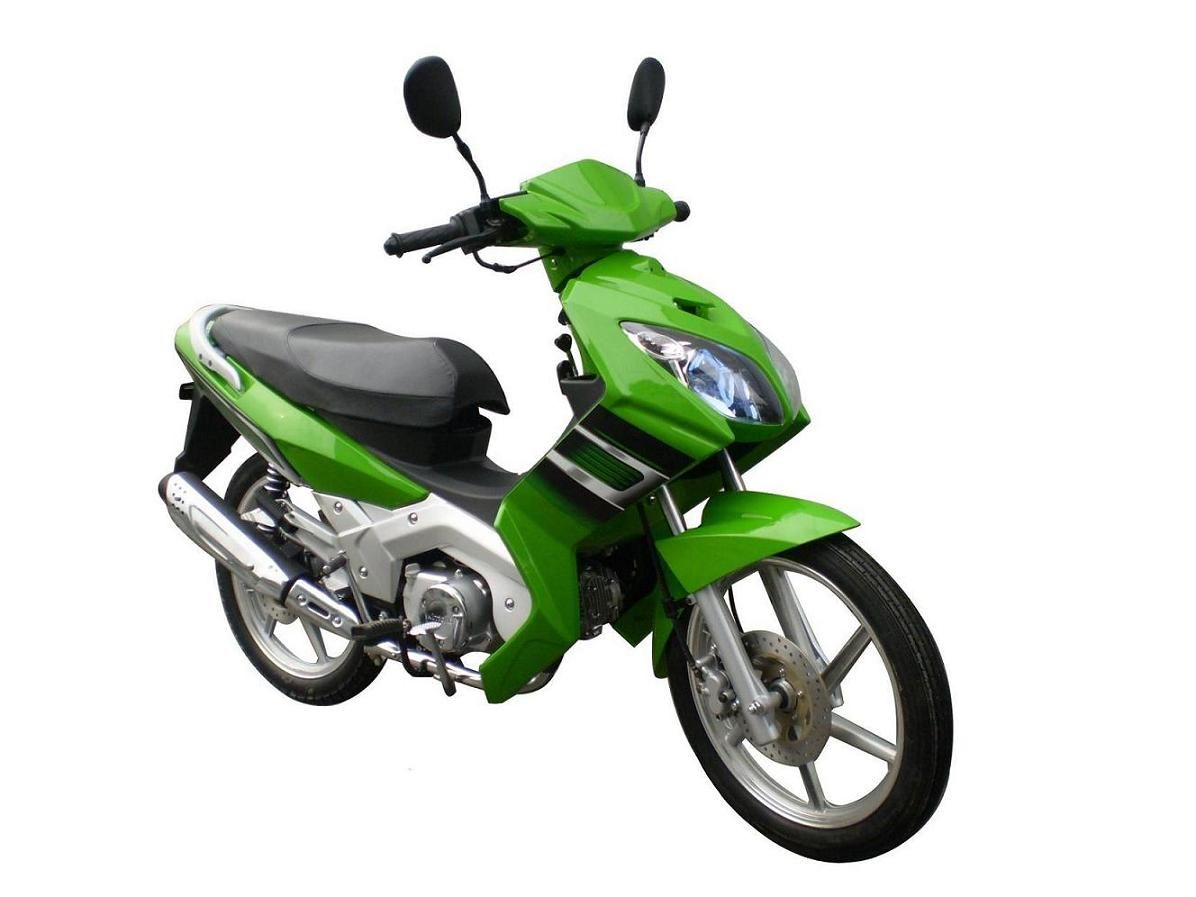

110cc Cub (SJ110-17)

Specifications

Prod Model:	SJ110-17

Product Description

Feature: 110cc, 4-stroke, kick & electric start, automatic clutch, front disc & rear drum brake, al-alloy wheel, single arm rest, with mirror.

Specification:
Engine Type: Single Cylinder, Air Cooling, 4 strokes
Clutch: Automatic
Ignition Method: C. D. I
Starting Method: Electric&kick start
Transmission: Chain drive
Bore*Stroke: 52.4*49.5
Compression Radio: 8.8: 1
Rated Power(KW/r/min): 5/7500± 500
Maximum Torque(N. M/r/min): 7/5500± 500
Lubrication: Splash
Gear: 4
Dimensions L*W*H(mm): 2010*700*1100
Wheel Base(mm): 1270
Seat Height(mm): 830
Min. Turning radius(mm): 1900
Min. Ground Clearance: 110
Rider Capacity: 2
Brake: Front disc&rear drum
Front wheel: 2.50-17
Rear wheel: 2.75-17
Fuel Tank Capacity(L): 3.5
Engine Oil Capacity(ml): 800
Climbing Capacity: ≥15
Max. Load(kg): 110
Max. Speed(kw/h): 80
Battery: 12V5Ah
Packing Size: 1680*450*810
Net weight(kg).: 84
Gross weight(kg).: 104
