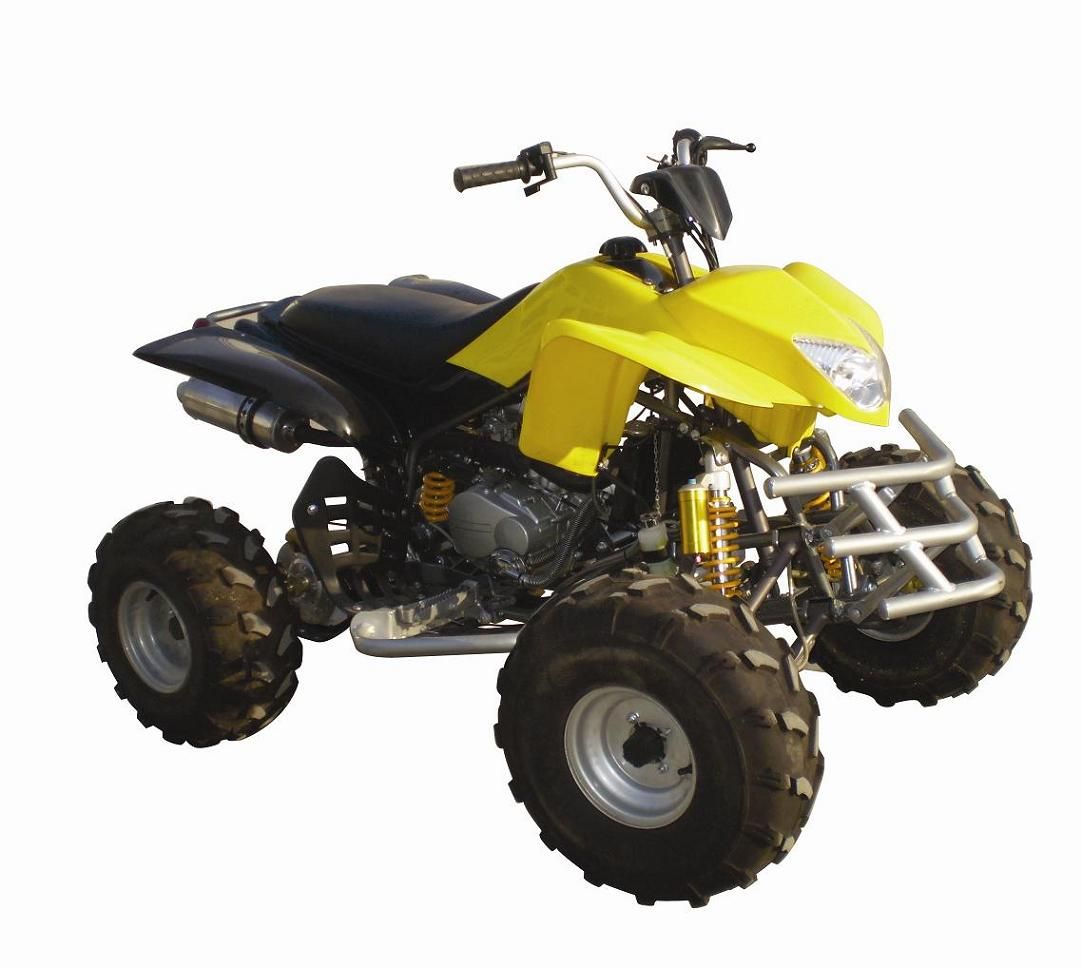

ATV (SJ200ST-10)

Specifications

Prod Model:	SJ200ST-10

Product Description

Feature: 200CC, 4 stroke, single cylinder, liquid cooling, electric starter, manual clutch, uncycling gear, inside reverse, chain drivefront & rear disc brake, front dual a-arm, rear swing arm, front inside air bag shock absorber, higher and wider tyre.

Specifications:
Engine type: Single cylinder, water cooling, 4 stroke
Clutch: Manual
Ignition method: C. D. I.
Start method: Electric
Cylinder: Single
Transmission: Chain
Displacement(ml): 196
Bore*stroke(mm): 63.5*62
Compression ratio: 9.2: 1
Rated power(kw/r/min): 11/8000± 500
Maximum torque(N. M/r/min): 13/6000± 500
Lubrication: Splash
Gear: 4 gear with reverse gear
Dimensions(L*W*H)(mm): 1820*1050*1160
Wheel base(mm): 1030
Seat height(mm): 820
Min. Turning radius(mm): 2600
Min. Ground clearance(mm): 110
Rider capacity: 2
Brake: Front&rear disc
Front wheel: 21*7-8
Rear wheel: 20*9.5-8
Fuel tank capacity(L): 4
Engine oil capacity(ml): 900
Climbing capacity: ≥20
Max. Load(kg): 150
Max. Speed(kw/h): 55
Battery: 12V9Ah
Packing size(L*W*H)(mm): 1480*1080*860
Net weight(kg): 180
Gross weight(kg): 190
