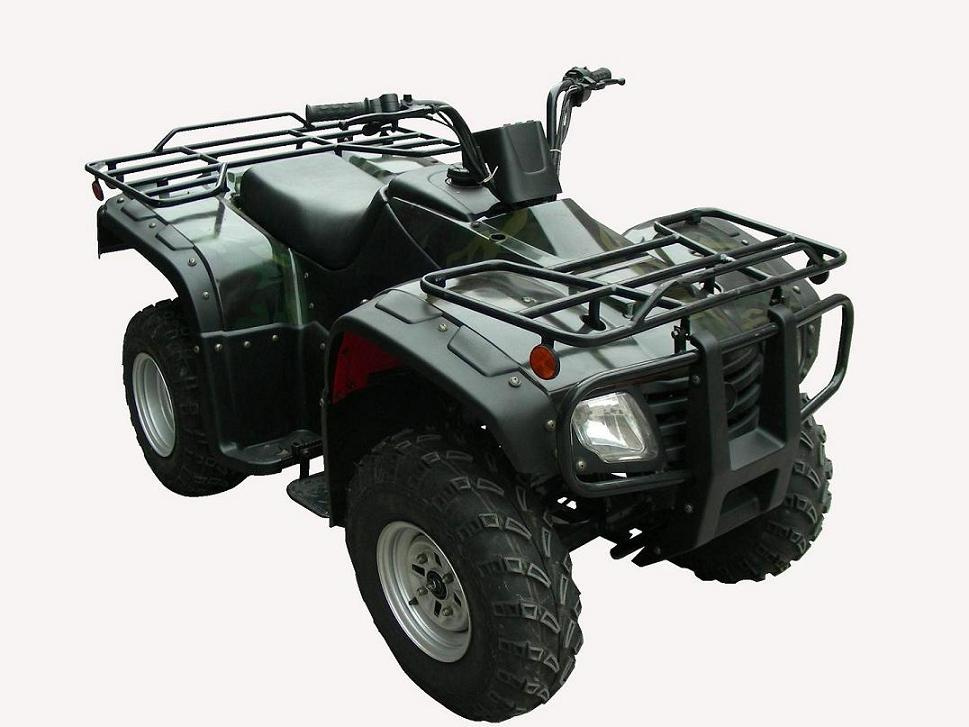

ATV (ZX-A006)

Specifications

Prod Model:	ZX-A006

Product Description

Engine: Single cylinder, liquid -cooled, 4 -stroke
Ignition mode: CDI
Compression proportion: 8.7: 1
Start mode: Electric / manual
Fuel tank capacity: 12L
Transmission mode: Axis
Power: 10kW / 6, 500rpm
Max. Torque: 15N. M / 5, 500rpm
Min. Ground clearance: 160mm
Max. Speed ≥ 75km/h
Power source: 12V, 14Ah
Transmission: 5 gears with one reverse gear, one neutral - gear,
Cylinder size: 71 x 58mm
Engine oil: 1.6L
Lubrication: Press splash
Displacement: 229.6mL
Parking trig: Mechanical lock
Gas cylinder number: 1
Front wheels: 22x 8 - 10
Rear wheels: 22 x 11 -10
Break type (F/R): Disc / disc
Front hanging: Single arm -swing
Rear hanging: Integral Dimensions
Product dimensions: 1, 900 x 1, 150 x 1, 220mm
Carton dimensions: 2, 150 x 1, 160 x 880mm
Wheelbase: 1, 200mm
Height of seats: 870mm
Dry weight: 270kg
Load capacity: 170kg
Climbing degree: ≥ 20
Min. Turning radius: 2, 900mm
Max. Number of riders: 1
Conveyance: Qty/20 GP: 10 units
Qty/4 GP: 22 units
Qty/40 HQ: 33 units
