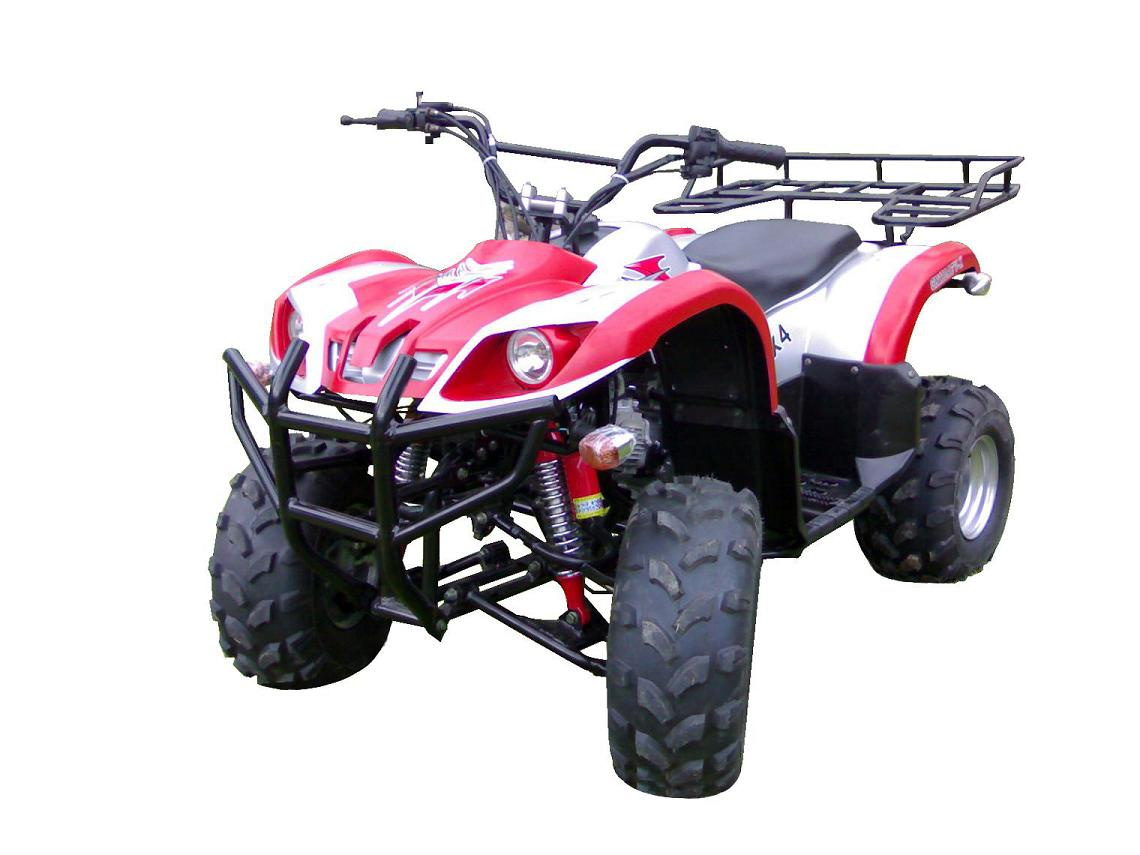

Home Ruian Zhanxiang Automobile & Motorcycle Parts Co., Ltd. ATV (ZX-A005)
Specifications
| Prod Model: | ZX-A005 |
|---|
Product Description
1. Engine type:107cc2. Bore and stroke:52.4x49.5
3. Compression rating:9.2:1
4. Max torque:6.5/5000rpm,
5. Max power: 4.7kw/7500rpm,
6. Ignition type : CDI
7. Transmission: 4-speed, semi-automatic (for 110cc) / manual clutch, 4- speed, reverse gear, chain
8. Brake (Front/Rear): Drum/Disc
9. Starting system :Electric start
10. Battery spec :12V,9AH
11. Front suspension details :double A x swing arm
12. Rear suspension details :mono shock swing arm
13. Front tire spec : 19x7-8
14. Rear tires spec : 18x9.5-8
15. Vehicle dimensions :174X95X109cm
16. Wheel base :1200mm
17. Seat height from ground :80cm
18. Ground clearance :120mm
19. Load capacity :150kg
20. Fuel tank capacity :7.8L
21. Gross weight in carton :150kg
22. Net weight :130kg
23. Packing size:149x83x77cm
