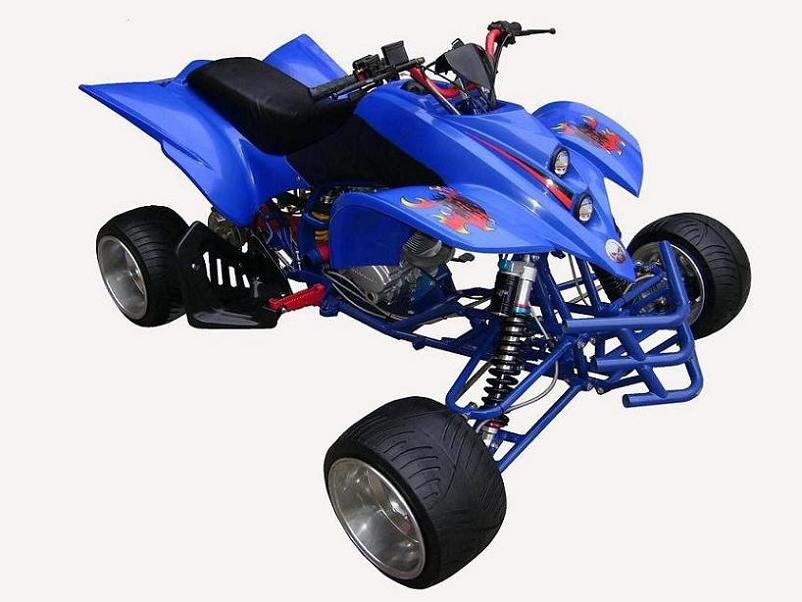

Home Ruian Zhanxiang Automobile & Motorcycle Parts Co., Ltd. ATV (ZX-A001)
Specifications
| Prod Model: | ZX-A001 |
|---|
Product Description
Engine Type: ZS167MM, signal cylinder, Water cooled, Four strokeDisplacement (ml): 229.2
Bore X Stroke (mm): 67x65
Compression Ratio: 10.5: 1
Max. Power (kw/r/min): 12.5/6500
Max. Torque (N. M/r/min): 18.5/5500
Max. Speed (Km/h): ≥75
Lubrication: Pressed/Splash
Clutch Type: Manual
Ignition: C. D. I ATV
Starting System: Electric start
Transmission System: Chain drive
Front Suspension: Independent double-wishbone with gas adjustable shocks, featuring adjustable spring preload, rebound and compression damping
Rear Suspension: Pro-Link with single shock featuring adjustable spring preload, rebound and compression damping
Front Brake: Hydraulic disk
Rear Brake: Hydraulic disk
Stationary Brake: Mechanical lock
Front Tire: 205/30-10
Rear Tire: 205/30-10
ATV Battery: 12V 9Ah
L x W x H (mm): 1960x1500x960
Seat Height (mm): 780
Wheelbase (mm): 1200
Min. Ground Clearance (mm): 110
Max. Permissionable Weight (kg): 150
Rider Capacity: 1 Person
Dry. Weigth (kg): 180
ATV Engine Oil (L): 0.8
ATV Gear Oil (L): 1.1
Fuel Tank Capacity (L): 11.5
