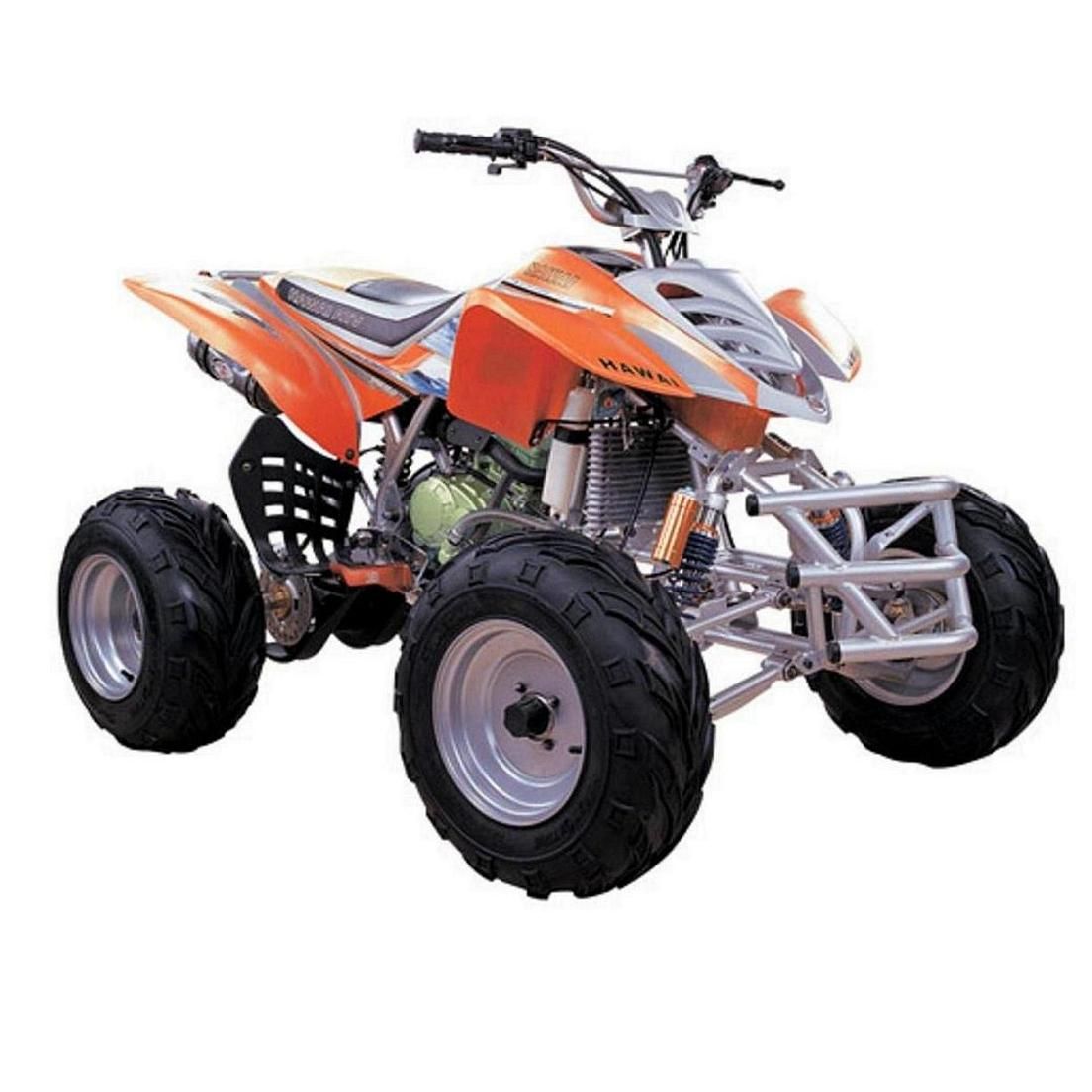

ATV (ZX-A003)

Specifications

Prod Model:	ZX-A003

Product Description

Engine: Single cylinder, water - cooled, 4 - stroke
Ignition mode: CDI
Compression proportion: 10.0: 1
Start mode: Electric
Fuel tank capacity: 4L
Transmission mode: Chain
Power: 11.5KW/6500r/min
Max. Torque: 17.5N. M/5500r/min
Min. Ground clearance: 120mm
Max. Speed ≥ 75km/h
Power source: 12V, 9Ah
Transmission: 4 gears with one reverse gear, manual clutch
Cylinder size: 63.5 x 62.2mm
Engine oil: 1L
Lubrication: Press splash
Displacement: 229.2ml
Parking trig: Mechanical lock
Gas cylinder number: 1
Front wheels: 21 x 7 - 10
Rear wheels: 20 x 10 - 10
Break type (F/R): Drum / disc
Front hanging: Integral ballonet absorber
Rear hanging: Inner ballonet absorber
Product dimensions: 1, 800 x 1, 120 x 1, 130mm
Carton dimensions: 1, 470 x 850 x 880mm
Wheelbase: 1, 150mm
Height of seats: 880mm
Dry weight: 155kg
Load capacity: 150kg
Climbing degree: ≥ 20
Min. Turning radius: 2, 650mm
Max. Number of riders: 1
Conveyance: Qty/20 GP: 20 units
Qty/40 GP: 44 units
Qty/40 HQ: 66 units
