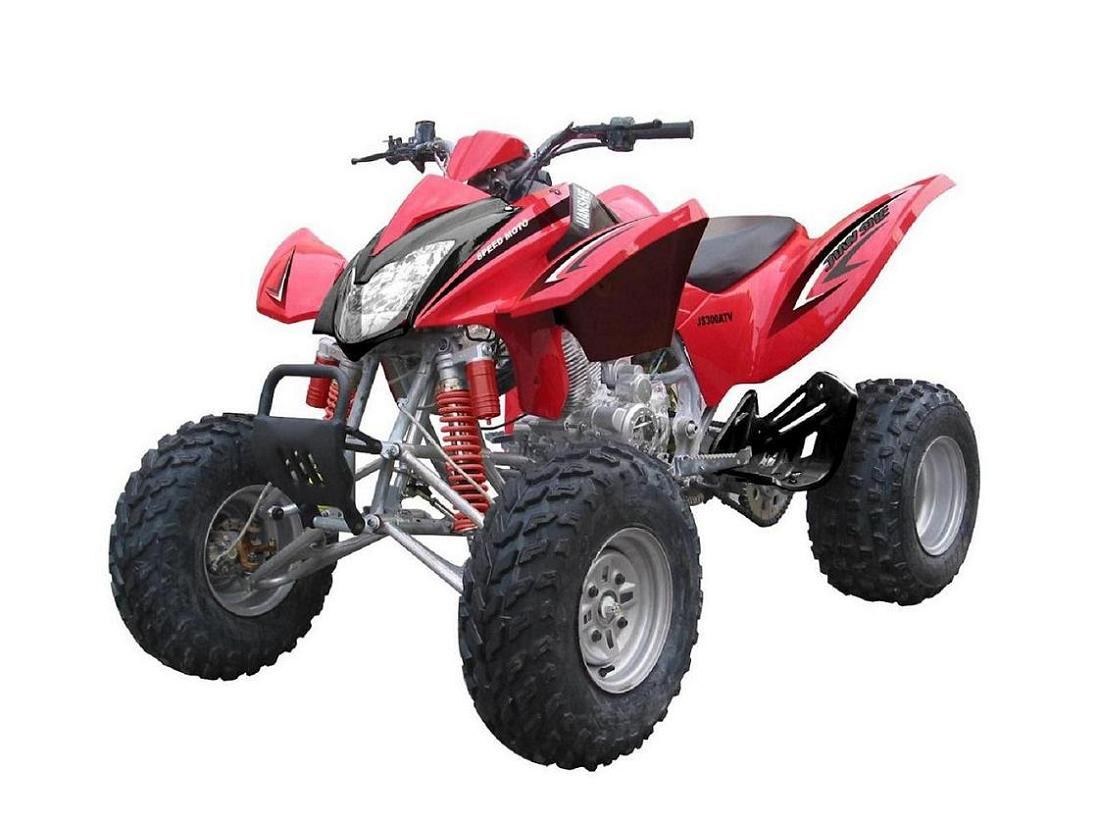

ATV (ZX-A002)

Specifications

Prod Model:	ZX-A002

Product Description

Engine: Signal cyclinder, air cooling, four stroke
Ignition mode: CDI
Compression proportion: 9.2: 1
Start mode: Electric
Fuel tank capacity: 9.8L
Transmission mode: Chain
Power: 11.5KW/6500r/min
Max. Torque: 17.5N. M/5500r/min
Min. Ground clearance: 200mm
Max. Speed ≥ 75km/h
Power source: 12V, 14Ah
Transmission: 4 gears with reverse, manual clutch
Cylinder size: 67 x 65mm
Engine oil: 1L
Lubrication: Press splash
Displacement: 230ml
Parking trig: Hydraulic pressure lock
Gas cylinder number: 1
Front wheels: 23 x 7 - 10
Rear wheels: 22 x 10 - 10
Break type (F/R): Disc/disc
Front hanging: Integral ballonet absorber
Rear hanging: Inner ballonet absorber
Product dimensions: 1, 870 x1, 150 x 1, 160mm
Carton dimensions: 1, 690 x 1, 150 x 880mm
Wheelbase: 1, 260mm
Height of seats: 740mm
Dry weight: 190kg
Load capacity: 150kg
Climbing degree: ≥ 30
Min. Turning radius: 2, 750mm
Max. Number of riders: 1
Conveyance:
Qty/20 GP: 12 units
Qty/40 GP: 28 units
Qty/40 HQ: 42 units
