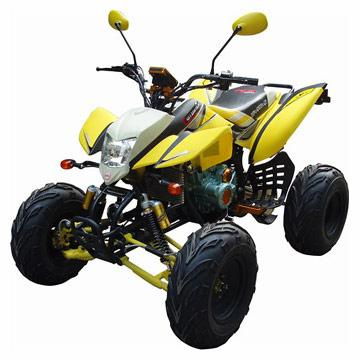

ATV (YX200ST-7)

Specifications

Prod Model:	YX200ST-7

Product Description

YX200ST-7
Length*width*height(mm) 1800x1120x1130
Wheel base(mm) 1150
Engine type single cylinder; Water-cooling; Four strokes
Start mode electric
Power(kW/r/min) 10.3KW/7500r/min
Max torque(N. M/r/min) 15N. M/6000r/min
Max speed(km/h) e75
Mini ground clearance(mm) 120
Dry weight(Kg) 155
Transmission mode chain
Break type drum/disc
Battery 12V 9Ah
Climbility e20
Tank capacity(L)4
Front shock absorber integral ballonet absorber
Rear shock absorber inner ballonet absorber
Tyre F: 21x7-10 R: 20x10-10
Cylinder diameter*journey(mm) 63.5x62.2
Displacement(ml) 197
Shift gear 4 F/with R, manual clutch
Seat height(mm) 880
Mini turning radium(mm) 2650
Parking trig mechanic lock
Ignition mode CDI
Loading capacity(kg) 150
Engine oil(L) 1
Gear oil 800ml
Person 1
Lubrication press splash
Compression ratio 9.2: 1
Cylinder number 1
Packing dimension(mm) 1470x860x880
