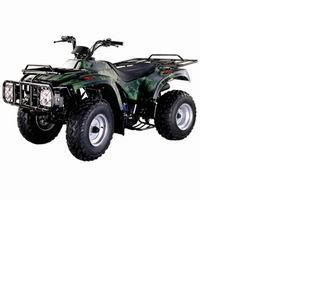

ATV (250C)

Specifications

Prod Model:	250C

Product Description

250CC single cylinder engine
4 stroke, air-cool, 5 speeds
Dimensions: 1940x1160x1050mm
Transmission system: Shaft drive/chain drive
Piston displacement (ml): 229.6
Starting system: Electric/recoil backup
Transmission: 5-speed, semi automatic
Ground clearance (mm): 155
Brake (front/rear): Drum/drum
Tire (front): AT23 x 7-10
Tire (rear): AT22 x 10-10
Ignition type: C. D. I
Fuel tank capability (L): 12
Front Suspension: Independent suspension
Rear Suspension: Swing arm
Parking brake: Mechanical lock
Battery: 12V-14AH
Max load capacity (kg): 165
Engine oil capacity (L): 1.6
Gear oil capacity (L): 0.27
Lubrication: Pressuring splash
Compression ratio: 8.7: 1
Dry weight (kg): 220
Rider capacity: 1 person
Wheel base: 1160
