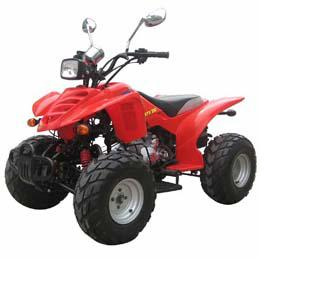

Home Jining Land Trading Co., Ltd. ATV (200CC-D(EEC))
Specifications
| Prod Model: | 200CC-D(EEC) |
|---|
Product Description
1) Displacement: 200cc2) Engine type: 4-stroke, air-cooled, with reverse gear
3) Cylinder arrangement: Single cylinder
4) Transmission system: Chain
5) Bore x stroke (mm): 52.4 x 49.5
6) Piston displacement (cc): 200
7) Compression ratio: 9.1: 1
8) Max. Power (kW/rpm): 4.7/8000
9) Max. Torque (Nm/rpm): 6.5/5500-6000
10) Starter system: Electric starter
12) Transmission: 4 speed, manual
13) Dimensions (L x W x H): 1510 x 810 x 1010mm
14) Wheel base (mm): 1120, rider capacity 1 person
15) Dry weight (kg): 110
16) Front tire: 8 x 9.0-8; Rear tire: 18 x 9.0-8
17) Front suspension: Double A x swing arm
18) Rear suspension: Monoshock swing arm
19) Front shock absorbers: Air chamber
20) Brakes (front/rear): Drum/drum
