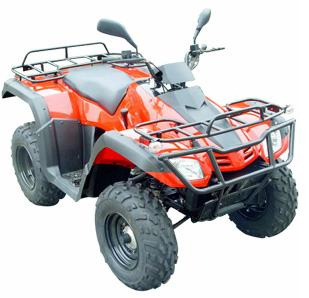

Home Jining Land Trading Co., Ltd. ATV (300CC)
Specifications
| Prod Model: | 300CC |
|---|
Product Description
ATV 300CC1) ENGINE TYPE: Single cylinder 4 Stroke, Water cooled, CVT
2) DISPLACEMENT: 300CC
3) Bore * Stroke: 72.5mm*66.8mm
4) Max. Power (kw/rpm): 13.5kw/6000r/min
5) Max. Torque (nm/rpm): 22N. M/5000r/min
6) Max. Speed: 70km/h
7) Clutch: Auto
8) Wheelbase (mm): 1271mm
9) Seat height (mm): 895mm
10) Ground clearance: 183mm
11) Net weight (kg): 267kg
12) Compression ration: 10.3: 1
13) Starting: T. C. I/electric
14) Gearshift: Forward (h/l) and reverse
15) Transmission: Shaft
16) Brake front: Front double hydraulic disc brake
17) Brake rear: Rear double hydraulic disc brake
18) Brake distance: <=15m
19) Front suspension: Double wishbone
20) Rear suspension: Single arm
21) Shock absorber (f): Double
22) SHock absorber (r): Single
23) Battery: 12v-14ah
24) Lubr. Capacity: 1.6l
25) Fuel: 93#
26) Fuel capacity: 14.5l
27) Turning radius: 3280mm
28) Max. Load (kgs/lbs): 156kgs
29) Front tire: 25*8-12
30) Rear tire: 25*10-12
31) Overall (l/w/h): 2016*11
