Specifications

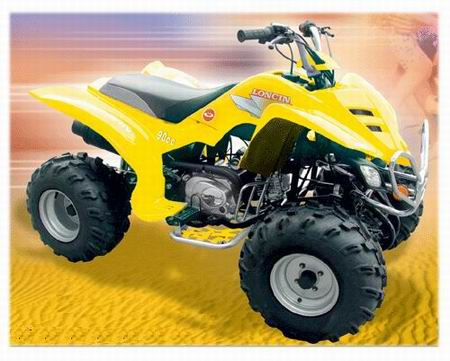

| Prod Model: | ATV 90 |
|---|
Product Description
ATV90 MAIN TECHNICAL DATAEngine Type: 4-Strokes. AirCooled
Transmission System: Shaft Drive
Bore x Stroke(mm): 47x 49.5
Piston Displacement: 86
Maximum Power(kw/r/min): 4/7500--8000
Maximum Torque(N. M. /r/min): 5.6/5600--6000
Starting System: Electric Sarter
Transmission: Semi Autometic
Seat Height(mm): 670
Min Turning Radius(mm): 2400
Ground Clearance: 100
Brake(Front/Rear): Drum/Drum
Tyre, Fromt: 19 X 7-8/2.9Psi
Tyre, Rear: 18 X 9.5-8/2.9Psi
Ignition Type: C. D. I
Fuel Tank Capacity(L): 7.8
Front Suspension: Leading Arm
Rear Suspension: Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-9Ah
Max Load Capacity(kg): 95
Engine Oil Capacity(L): 0.95
Gear Oil Capacity(L): 0.12
Dry Weight(kg): 130
Rider Capacity: 1 Person
Wheel Base: 1040
Overall Height(mm): 950
Lubrication: Auto
Overall Length(mm): 1540
Overall Width(mm): 860
Compression Ration: 8.5: 1
Cylinder Arrangement: Single Cylinder
Container quantity 30units/20'GP 66units/40'GP 66units/40'HQ
