Specifications

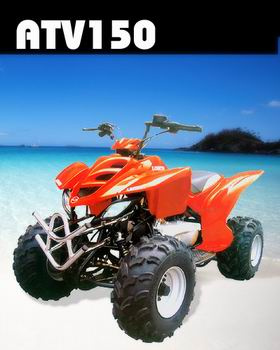

| Prod Model: | ATV 150 |
|---|
Product Description
ATV150 MAIN TECHNICAL DATAEngine Type: 4-Strokes, Air Cooled
Transmission System: Chain Drive
Bore x Stroke(mm): 56.6X57.8
Piston Displacement: 149.5
Maximum Power(kw/r/min): 6.5/7500
Maximum Torque(N. M. /r/min): 9/6000
Starting System: Electric Starter
Transmission: V-belt CVT
Seat Height(mm): 720
Min Turning Radius(mm): 2000
Ground Clearance: 100
Brake(Front/Rear): Drum/Disc
Tyre, Fromt: AT19 X 7-8/2.9 Psi
Tyre, Rear: AT18 X 9.5-8/2.9 Psi
Ignition Type: C. D. I
Fuel Tank Capacity(L): 7.8
Front Suspension: Independent suspension
Rear Suspension: Monoshock Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-9Ah
Max Load Capacity(kg): 95
Engine Oil Capacity(L): 0.9
Gear Oil Capacity(L): 0.11
Dry Weight(kg): 150
Rider Capacity: 1 Person
Wheel Base: 1110
Overall Height(mm): 1030
Lubrication: Pressuring splash
Overall Length(mm): 1610
Overall Width(mm): 900
Container quantity 27units/20'GP 63units/40'GP 63units/40'HQ
