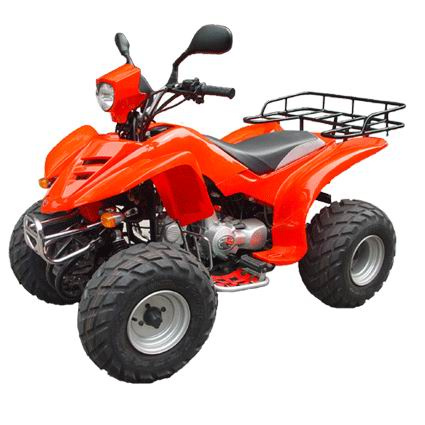

ATV (110-ER)

Specifications

Prod Model:	ATV 110-ER

Product Description

ATV110-ER MAIN TECHNICAL DATA
Engine Type: 4-Strokes. AirCooled 3 Speeds
Transmission System: Shaft Drive with Reverse
Bore x Stroke(mm): 52.4x 49.5
Piston Displacement(ml): 107
Maximum Power(kw/r/min): 5.5/8000
Maximum Torque(N. M. /r/min): 6.5/5750
Starting System: Electric Sarter
Transmission: 3-Speed. +Reverse Semi Autometic
Seat Height(mm): 670
Min Turning Radius(mm): 2400
Ground Clearance: 100
Brake(Front/Rear): Drum/Drum
Tyre, Front: 19 X 7-8/2.9Psi
Tyre, Rear: 18 X 9.5-8/2.9Psi
Ignition Type: C. D. I
Fuel Tank Capacity(L): 7.8
Front Suspension: Single A-arm
Rear Suspension: Monoshock Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-9Ah
Loading 40'=66boxes. 20'=30
Max Load Capacity(kg): 95
Engine Oil Capacity(L): 0.95
Gear Oil Capacity(L): 0.12
Dry Weight(kg): 130
Rider Capacity: 1 Person
Rear Track(mm): 710
Front Track(mm): 725
Wheel Base: 1040
Overall Height(mm): 950
Lubrication: Auto
Overall Length(mm): 1540
Overall Width(mm): 860
Compression Ration: 9.1: 1
Cylinder Arrangement: Single Cylinder
Container quantity 30units/20'GP 44units/40'GP 60units/40'HQ
