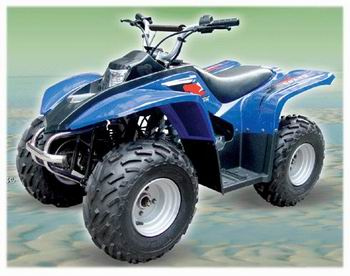

ATV (50-C)

Specifications

Prod Model:	ATV 50-C

Product Description

ATV50-C MAIN TECHNICAL DATA
Engine Type: 4-Strokes. AirCooled. Fully Automatic
Transmission System: Chain Drive
Bore x Stroke(mm): 47 x 41.4
Maximum Power(kw/r/min): 3.5/7000
Maximum Torque(N. M. /r/min): 4.5/6000
Starting System: Electric Sart
Final Drive: Chain
Seat Height(mm): 542
Min Turning Radius(mm): (inside. Tire)1500±150
Ground Clearance(mm): 110
Brake(Front/Rear): Drum/Disc
Tyre, Front: AT 16 X 8-7
Tyre, Rear: AT 16 X 8-7
Ignition Type: C. D. I
Fuel Tank Capacity(L): 3.2
Front Suspension: Dual A-arm
Rear Suspension: Monoshock Swing Arm
Parking Brake: Mechanical Lock
Battery: 12V-14Ah
Max Load Capacity(kg): 45
Engine Oil Capacity(L): 0.65
Dry Weight(kg): 74
Rider Capacity: 1 Person
Rear Track(MM): 530
Front Track(MM): 530
Container Quantity "36units/20'GP
81units/40'GP
107units/40'HQ"
