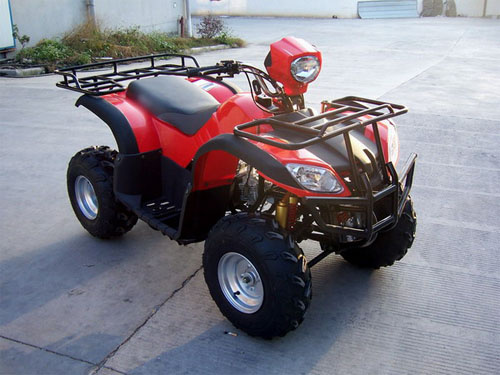

ATV 110cc (SN-ATV110-2)

Specifications

Prod Model:	SN-ATV110-2

Product Description

1) Engine type: single cylinder, 4-stroke, air-cooled, 107cc
2) Max. power: 6.0kW / 8,000r/min
3) Max. torque: 7N.m / 6,000r/min
4) Compression ratio: 9.0:1
5) Max. speed: 55km/h
6) Lubrication oil capacity: 0.9L
7) Min. fuel consumption: 365g/kW.h
8) Transmission: by chain
9) Brake: front drum brake, rear hydraulic disc brake
10) Front hanging: double arm-swing; rear hanging: integral
11) Seat height: 80cm
12) Wheel base: 1,110mm
13) Front track: 760mm
14) Rear track: 680mm
15) Min. ground clearance: 150mm
16) Front tires: 19 x 7-8; back tires: 18 x 9.5-8
17) Dimensions (L x W x H): 1,730 x 920 x 1,050mm

Packing:
N.W.: 135kg
G.W.: 155kg

Conveyance:
Qty/20' GP: 21pcs
Qty/40' GP: 42pcs
Qty/40' HQ: 42pcs
